17 11 031 Replacing Fan Cowl (S54)

Release screws (1).

Remove underbody protection.

Fig 1: Locating Underbody Protection Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1).

Remove intake hood (2) and intake pipe (3) in direction of arrow.

Fig 2: View Of Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (1) from control unit for xenon light.

Remove cover (2).

Fig 3: Locating Plug From Control Unit For Xenon Light

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1, 2, 3).

Remove control unit for left xenon light.

Remove intake filter housing.

Fig 4: Identifying Retaining Screws For Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expansion rivets and lift out air ducts on left and right.

Lay left air duct, which is secured in place by coolant hose, to one side.

Fig 5: Removing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join lug (1) on left and right air duct in corresponding slot (2) in fan cowl.

Fig 6: Installing Lug In Corresponding Slot In Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan clutch with fan impeller from water pump. Refer to 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52 / S54 / M52 / M52TU / M54 / M56) .

Release screw (1).

Fig 7: Identifying Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Detach fan cowl mounting at bottom left and right.

Fig 8: Locating Fan Cowl Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) for AUC sensor and disconnect.

Unlock plug connection (2) for electric fan and disconnect.

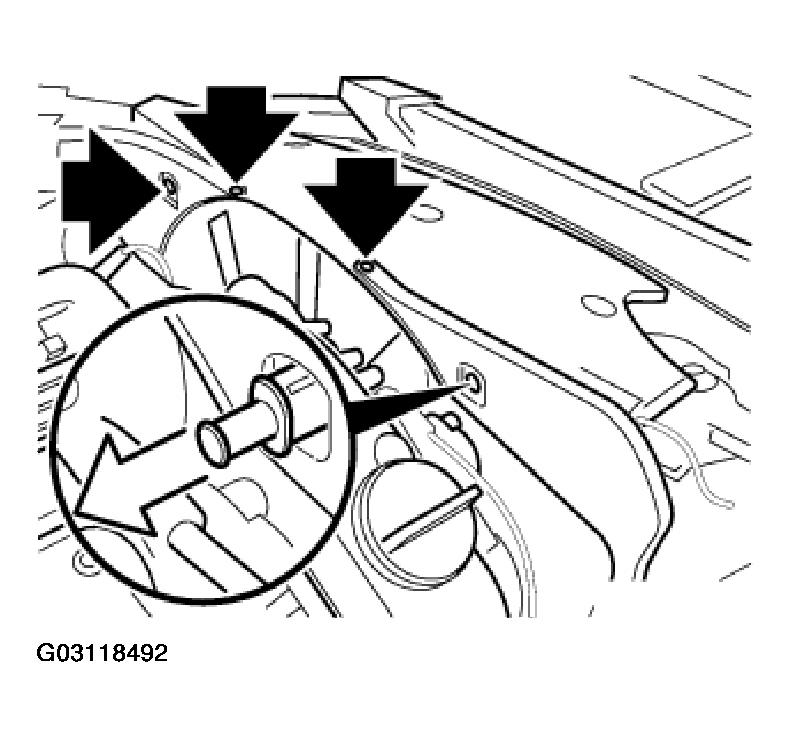

Fig 9: View Of Plug For AUC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Gently press fan cowl in middle at top towards rear and unhook guide lug.

Lift out fan cowl and fan impeller together.

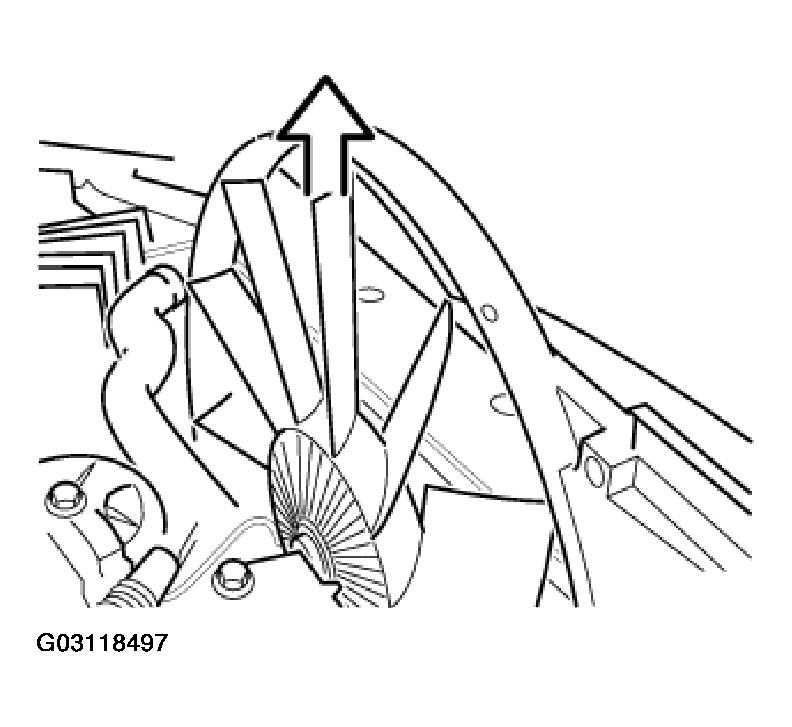

Fig 10: Removing Fan Cowl And Impeller
