17 40 000 Removing And Installing/Replacing Complete Auxiliary Fan
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Switch off ignition.
Remove carrier for bumper trim at front. Refer to 51 11 050 REMOVING AND INSTALLING/REPLACING CARRIER FOR FRONT BUMPER TRIM (M3 / LIGHTWEIGHT DESIGN) .

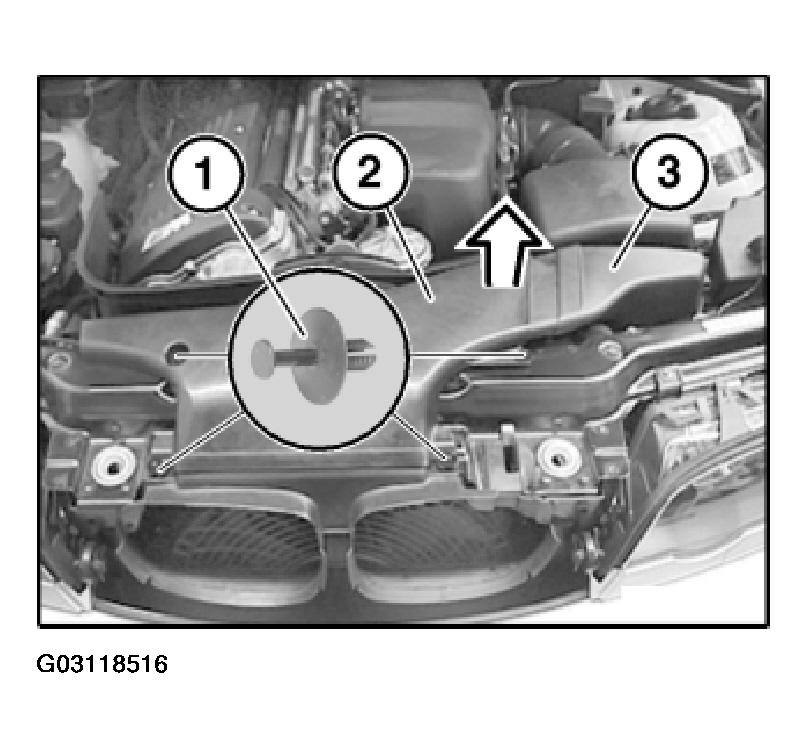

Release expansion rivets (1).
Release expansion rivets.
Remove air duct (1).

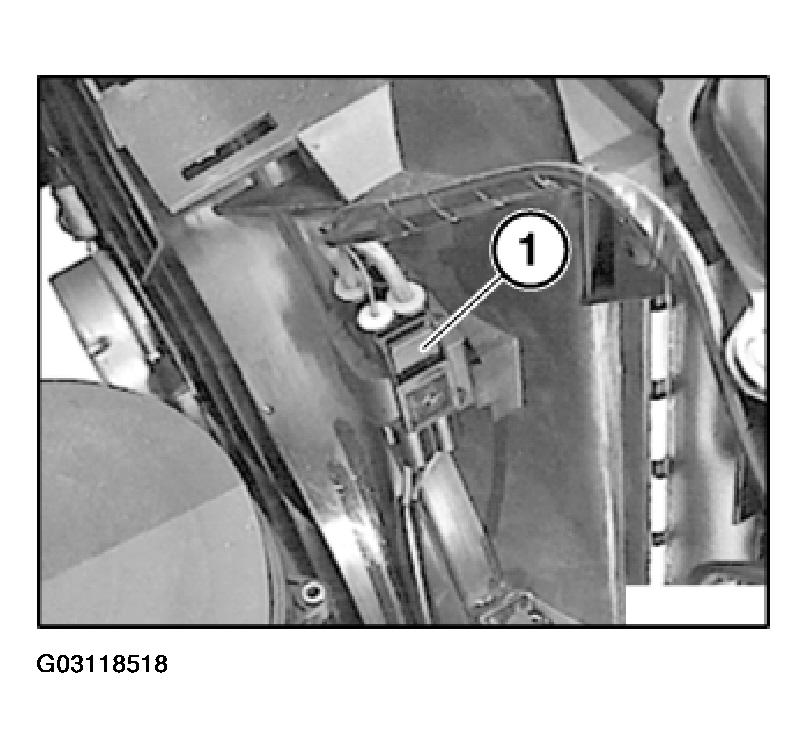

Unlock plug connection (1) and disconnect.
Unpin plug connection on fan side. Refer to 61 13... OPENING PLUG HOUSINGS AND REMOVING CONTACTS .
Installation:
Unpin plug connection on new fan prior to installation.

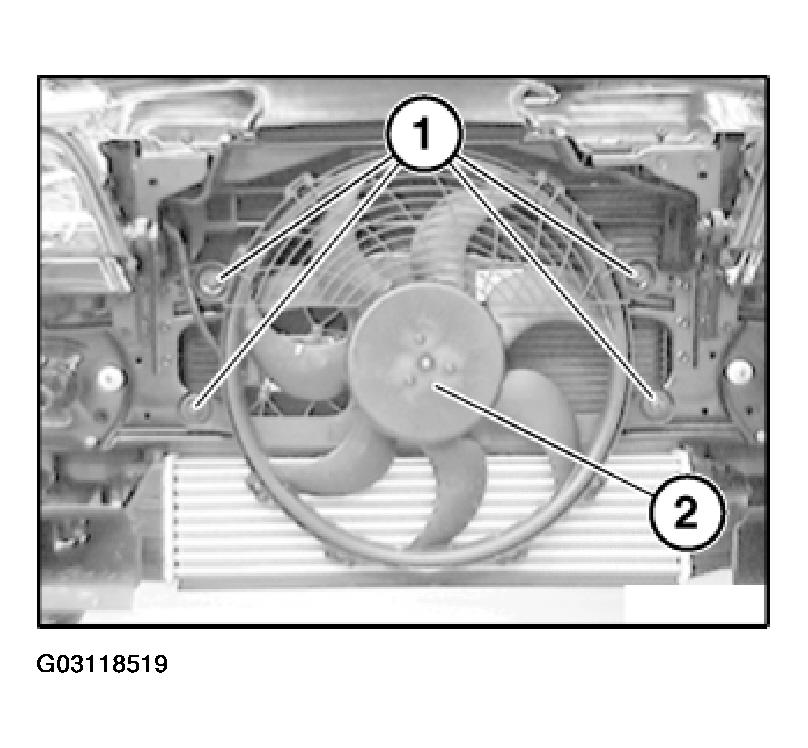

Release screws (1).
Remove fan impeller (2).
