51 11 050 Removing And Installing/Replacing Carrier For Front Bumper Trim (M3/Lightweight Design)

Only on right side:

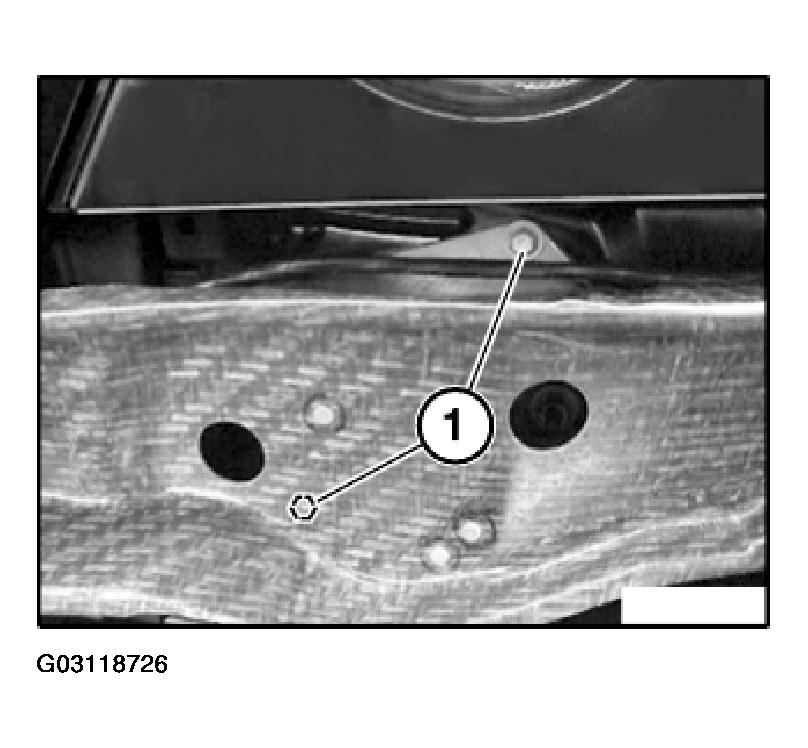

Release screw (1) for washer reservoir.

Fig 1: Removing Screw For Washer Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

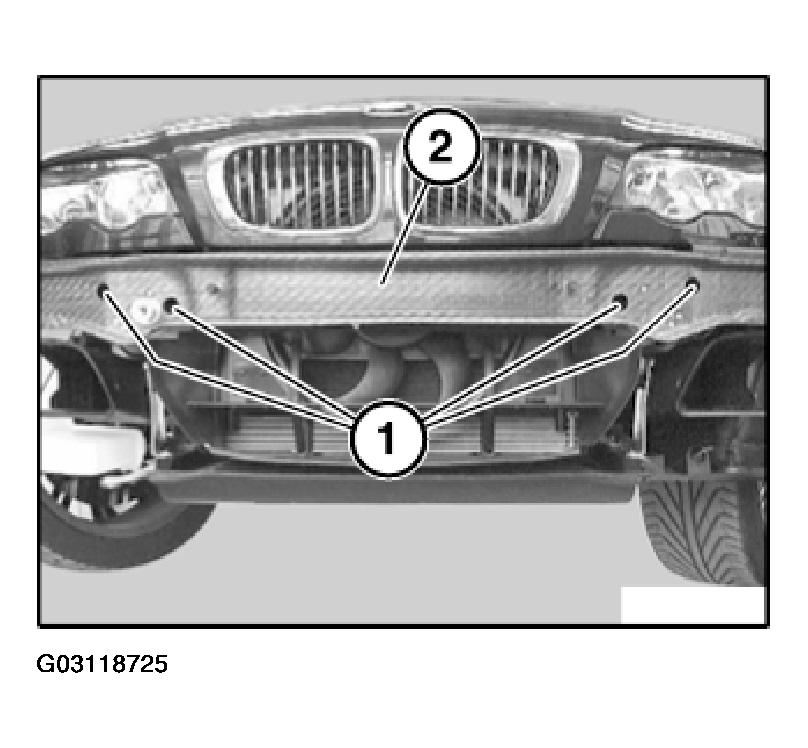

Release screws (1) and pull right carrier (2) towards front slightly.

Installation:

Observe tightening torque, refer to 51 11 4AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .

Fig 2: Releasing Carrier Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release metal screws (1) on left and right.

Fig 3: Locating Metal Screws On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hose (1).

Disconnect plug connections (3).

Version With Headlight Cleaning System:

Unlock hose (2) and detach.

Fig 4: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Remove filler hose (1) from washer fluid reservoir (2).

Installation:

If necessary, replace faulty O-ring (3).

Fig 5: Removing Filler Hose From Washer Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Remove center section of bumper (carrier).

Installation:

Distance (A) must be the same all around between the bumper and body cutout.

Measurement (A) = 5 +/- 1 mm.

Fig 6: Identifying Measurement Of Bumper Gap

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove washer fluid reservoir (2).

Fig 7: Locating Washer Fluid Reservoir Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove air horns (2).

Unclip wiring harness (3) and remove.

Fig 8: View Of Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.
