12 61 280 Removing And Installing/Replacing Oil Pressure Switch (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

NOTE: Drain the main flow oil filter in order to prevent an excessive discharge of oil when the oil pressure switch is removed. This operation is described in 00 00 250 BMW ENGINE OIL SERVICE INCL. SUPPLEMENTARY SERVICE (S54) .

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S54) .

Unlock plug (1) and detach from oil pressure switch (2). Unscrew oil pressure switch (1).

Tightening torque, refer to 12 61 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

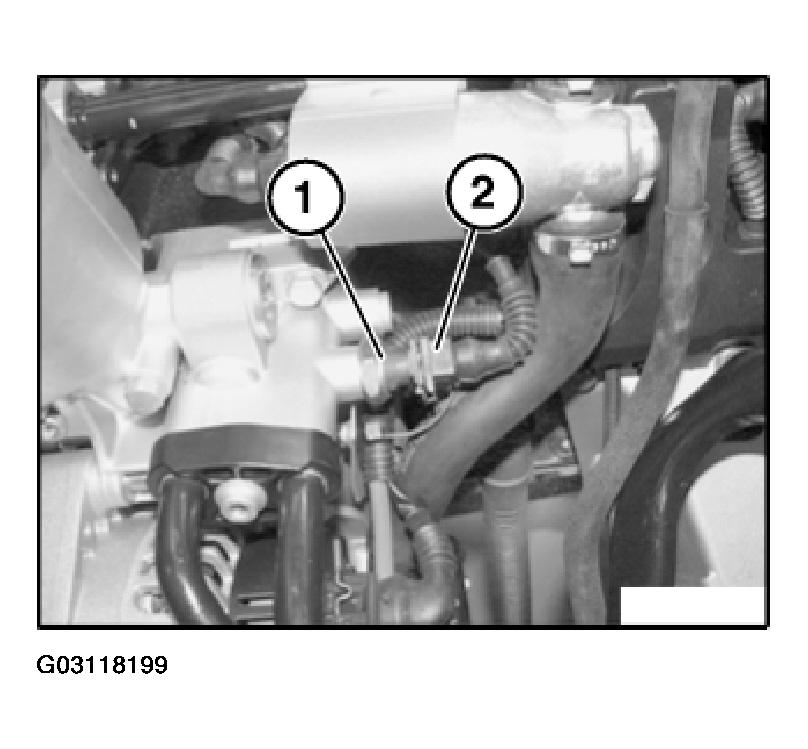

Fig 1: Unlocking Plug And Detach From Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble car and set in horizontal position. Start engine and run at idle until oil indicator lamp goes out. Switch off engine and wait approx. 5 minutes. Then check engine oil level. Top up engine oil if necessary.
