00 00 250 BMW Engine Oil Service Incl. Supplementary Service (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Work step 00 00 250 comprises the engine oil and supplementary services.

Only the engine oil service will be described in these repair instructions.

For the supplementary service work steps, refer to the vehicle-specific inspection sheet.

Engine Oil Service:

NOTE: When the main flow oil-filter cover is released, the oil flows from the oil-filter housing back into the sump.

Unfasten oil filter cover.

Installation:

Tightening torque, refer to 11 42 2AZ in ENGINE - TIGHTENING TORQUES .

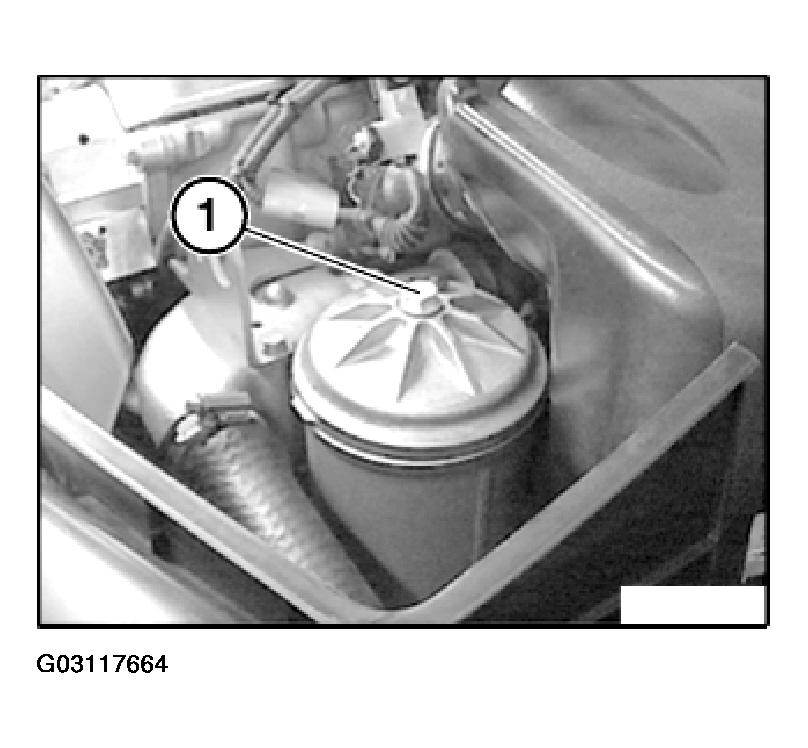

Fig 1: Locating Oil Filter Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring in oil-filter cover and sealing ring on bolt.

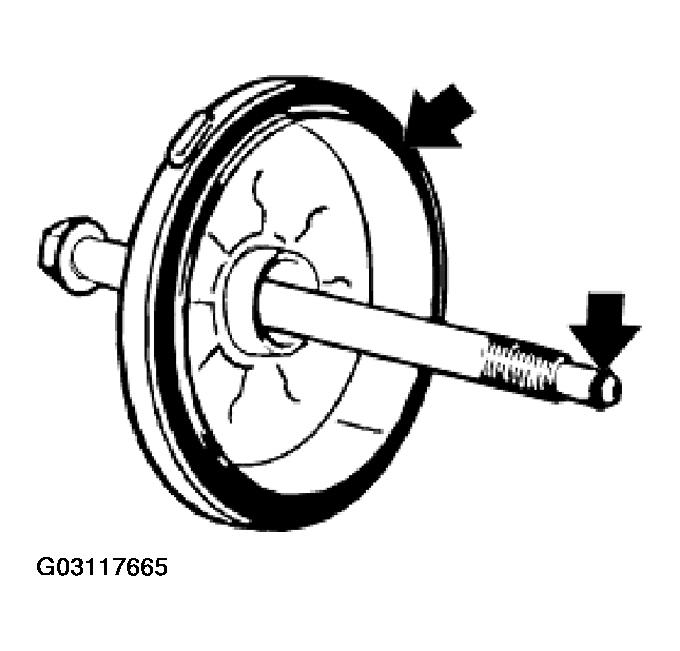

Fig 2: Locating Sealing Rings In Oil-Filter Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Replace oil filter element (1).

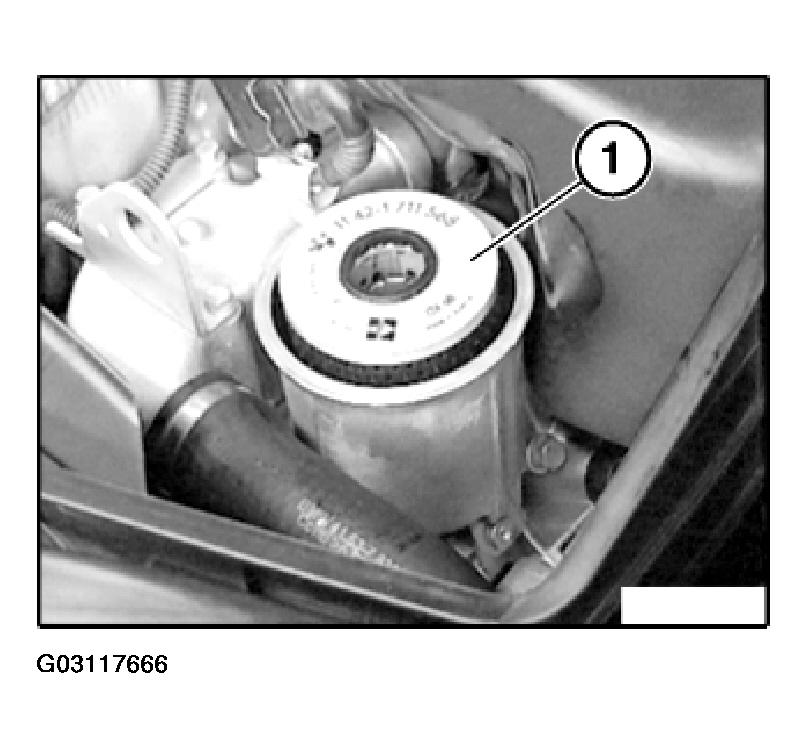

Fig 3: Locating Oil Filter Element

Courtesy of BMW OF NORTH AMERICA, INC.

Drain or draw off engine oil. If engine oil is drained:

E46 Only:

Lever out cover (1) on side with a screwdriver.

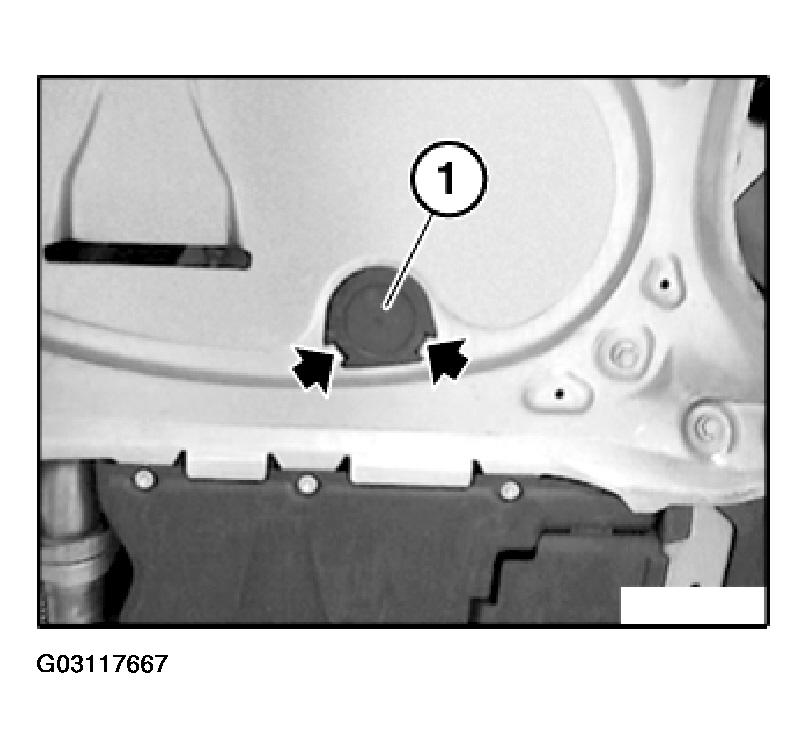

Fig 4: Locating Cover (E46 Only)

Courtesy of BMW OF NORTH AMERICA, INC.

Open oil drain plug and drain off engine oil.

Installation:

Replace sealing ring.
Tightening torque, refer to 11 13 1AZ in ENGINE - TIGHTENING TORQUES .

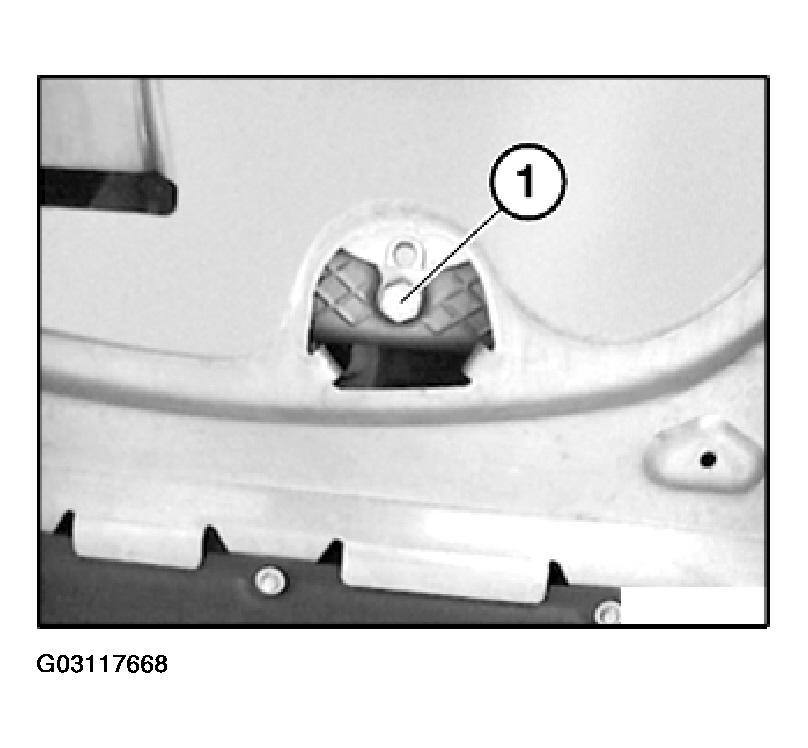

Fig 5: Locating Oil Drain Plug
Courtesy of BMW OF NORTH AMERICA, INC.

Complete vehicle and set in horizontal position. Top up engine oil.

Start engine and run at idle until oil indicator lamp goes out. Switch off engine, wait approx. 5 minutes and then check engine oil level.

Top up engine oil if necessary.

Supplementary Service:

Refer to vehicle-specific inspection sheet.
