11 23 010 Removing And Installing/Replacing Vibration Damper (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 9 120
11 0 280

Remove engine underguard.

Remove fan cowl. Refer to 17 11 031 REPLACING FAN COWL (S54) .

Remove A/C compressor drive belt. Refer to 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (S54) .

Remove alternator drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (S54) .

Unfasten screws.

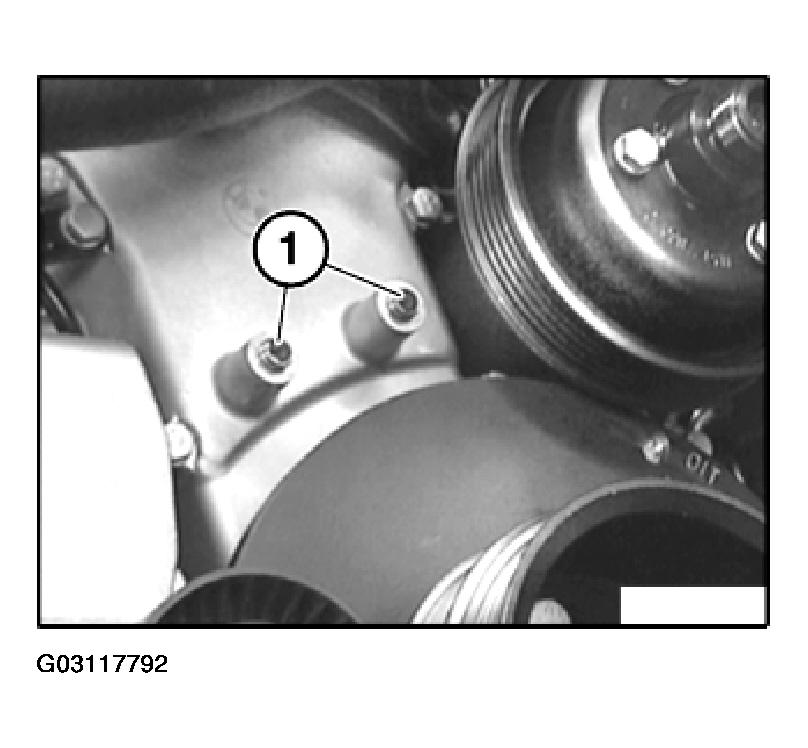

Remove plate (1) for TDC marking.

Fig 1: Identifying Plate For TDC Marking

Courtesy of BMW OF NORTH AMERICA, INC.

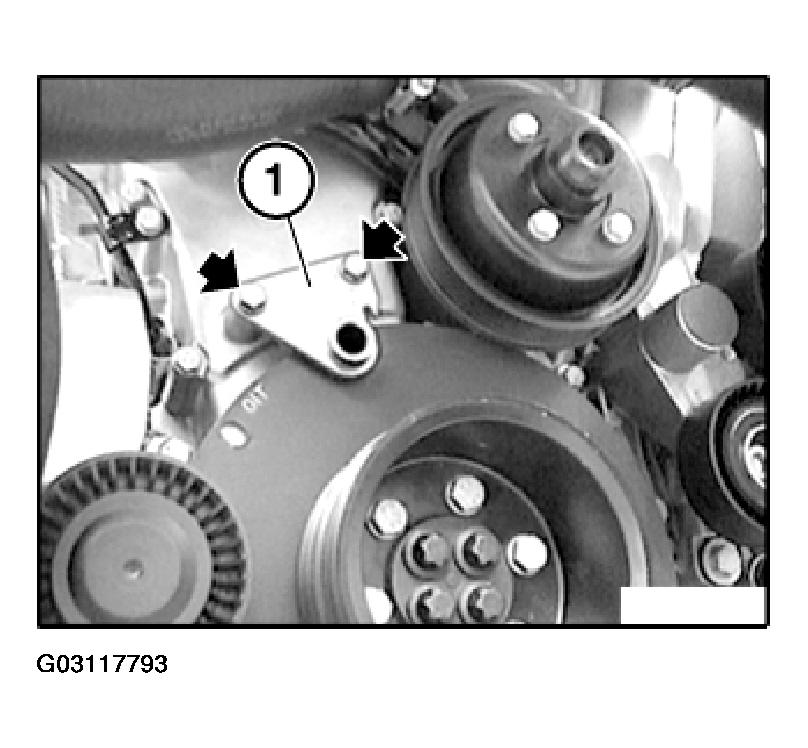

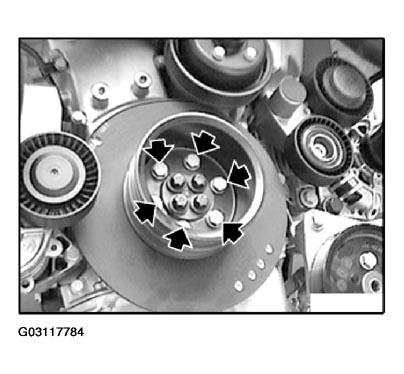

Unfasten screws. Remove belt pulley.

Fig 2: Locating Belt Pulley Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tool 11 0 280 on vibration damper.

NOTE: Special tool 11 0 280 is supported on mounting bracket for A/C system.

CAUTION: Do not damage mounting bracket for A/C system.

Loosen screws (1).

Remove special tool 11 0 280.

Fig 3: Mounting Holder On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage belt pulley of water pump.

Remove vibration damper from crankshaft and feed out below belt pulley of water pump.

Fig 4: Removing Vibration Damper From Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align locating bore in vibration damper to dowel pin (1).

Fig 5: Aligning Locating Bore In Vibration Damper To Dowel Pin

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Feed in vibration damper (1) behind belt pulley (2) of water pump.

Fig 6: Feeding In Vibration Damper Behind Belt Pulley Of Water Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach vibration damper and align to dowel pin.

NOTE: A washer is installed under screws (1).

Replace screws (1).

NOTE: Feed in special tool 11 0 280 behind tensioning roller and support on mounting bracket of A/C system.

Fig 7: Attaching Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tool 11 0 280 on vibration damper.

Installation:

Tighten down screws on vibration damper with special tool 00 9 120.

Tightening torque, refer to 11 23 2AZ in ENGINE - TIGHTENING TORQUES .

Fig 8: Mounting Special Tool On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install belt pulley.
Tighten down screws.
Tightening torque, refer to 11 23 3AZ in ENGINE - TIGHTENING TORQUES .

Fig 9: Installing Belt Pulley
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check dowel sleeves (1) for damage and correct installation

Fig 10: Checking Dowel Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install plate (1) for TDC marking.

Fig 11: Installing Plate For TDC Marking

Courtesy of BMW OF NORTH AMERICA, INC.
