11 00 039 Checking Compression Of All Cylinders (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - M3 .

Special Tools Required:

11 0 224
11 0 235

Read out fault memory of DME control unit.
Check stored faults.
Rectify faults.
Clear fault memory.

Disconnect fuel pump relay or fuel pump fuse. Start engine and allow remaining fuel to escape. This prevents fuel from being injected, the catalytic converter from being damaged and the test result from being distorted during the compression pressure check.

CAUTION: High tension - danger!

Disconnect all supply leads from ignition coils (interrupt power supply to ignition coils).

Remove lower microfilter section (E46 only).
Remove ignition coil cover.
Remove ignition coils. See 12 13 511 REPLACING IGNITION COIL (S54)
Remove all spark plugs. See 12 12 011 REPLACING ALL SPARK PLUGS (S54)

NOTE: Check that sealing ring is in perfect condition on special tool 11 0 235.

Screw special tool 11 0 235 by hand into spark plug thread and connect special tool 11 0 224.

Depress accelerator and actuate starter until compression stops rising.

Compression pressure, refer to ENGINE - TECHNICAL DATA .

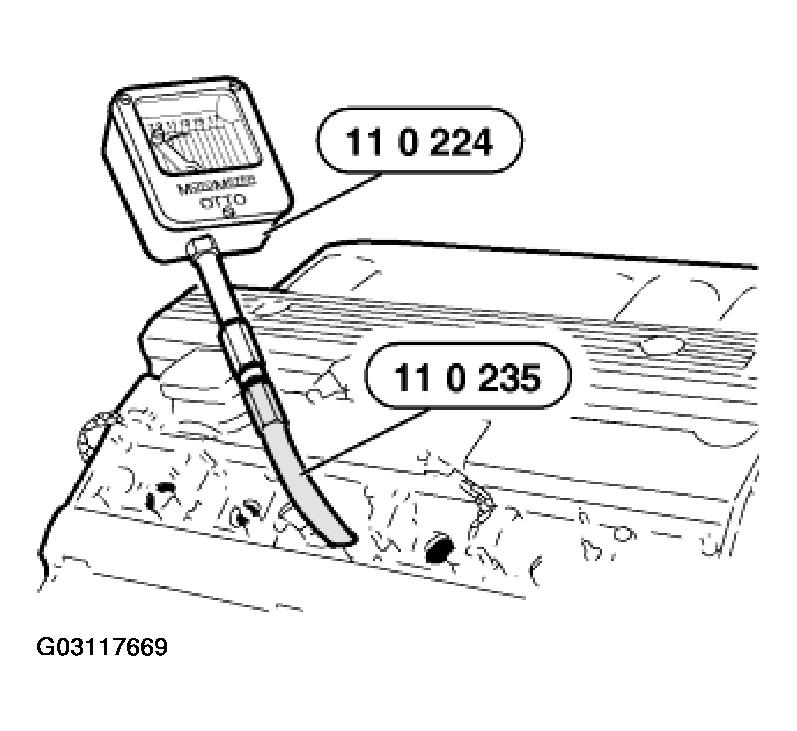

Fig 1: Checking Compression Of All Cylinders (S54)

Courtesy of BMW OF NORTH AMERICA, INC.

Now clear the fault memory.
