12 13 511 Replacing Ignition Coil (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Remove heater bulkhead.

Remove engine vent (1).

Release screws.

Unscrew oil filler cap (2).

Remove cover.

Fig 1: Removing Engine Vent And Cover

G03118119

Courtesy of BMW OF NORTH AMERICA, INC.

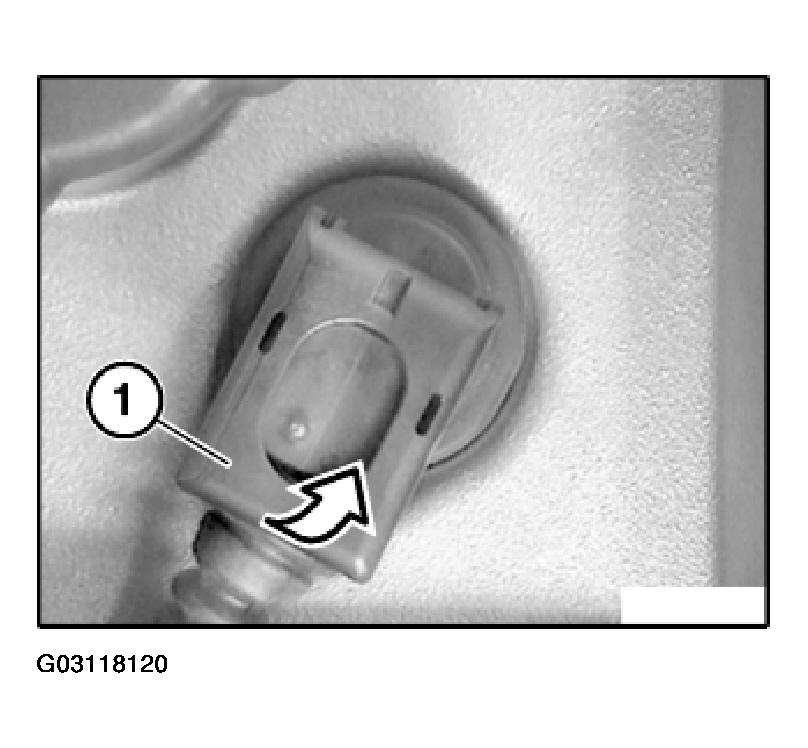

Unlock plug lock (1) for ignition coil.

Fig 2: Unlocking Plug Lock Of Ignition Coil

G03118120

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (1) from ignition coil.

Fig 3: Detaching Plug From Ignition Coil

G03118121

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw ignition coil.

This removal procedure is applicable to all ignition coils.

Installation:

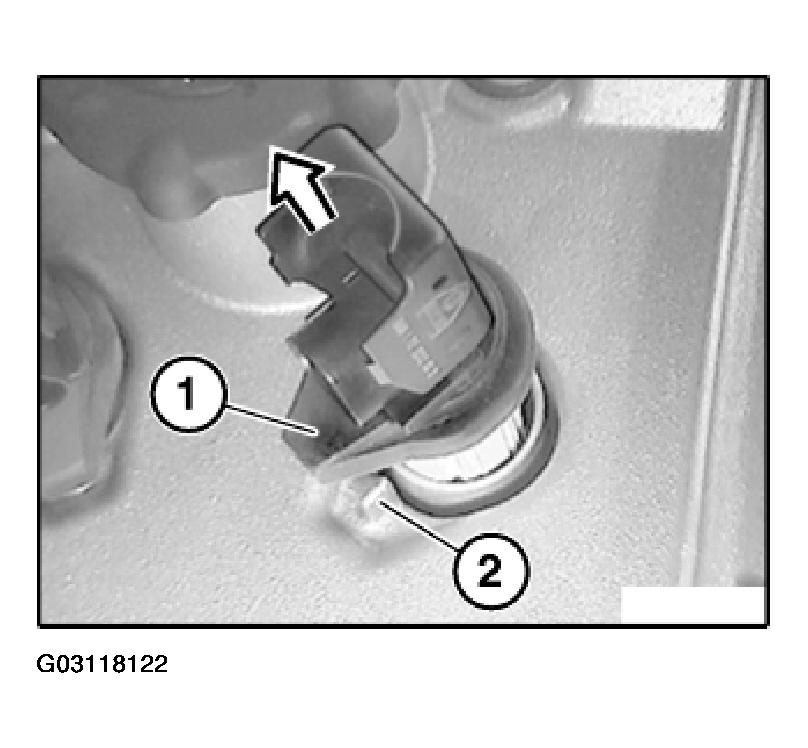

The lug on the cylinder head (2) must be inserted in the opening on the underside (1) of the rubber seal.

Fig 4: Inserting Lug On Cylinder Head In Opening On Underside Of Rubber Seal

G03118122

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.
