63 12 001 Removing and installing/replacing left headlight
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
CoupeA/Convertible from 03/2003:
Remove left headlight (xenon headlight). See 63 12 005 Removing and installing/replacing left headlight (xenon headlight)
All others:
Necessary preliminary tasks:
- Remove direction indicator lamp. See 63 13 150 Removing and installing/replacing complete front left or right turn signal lamp
- Remove trim from headlight housing. See Fig 1
NOTE:
Illustration shows air cleaner cover removed for purposes of clarity.
Unlock and disconnect all plug connections on headlight.

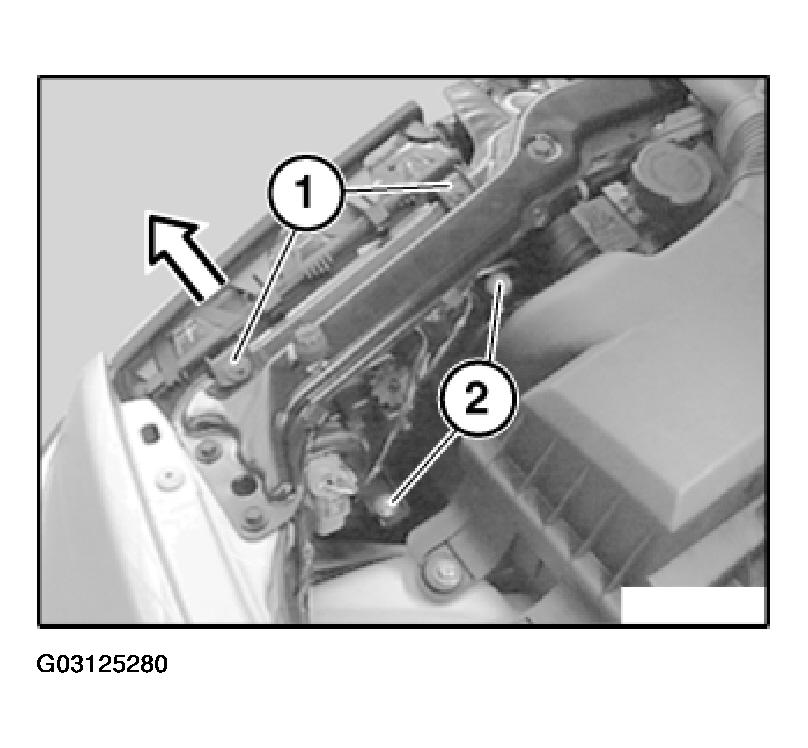

Release screws (1) and (2) and lever out headlight towards front.
Installation:
Tighten screws (1) hand-tight only.
Pull headlight fully towards front.
Close hood and adjust headlight to fit.
Open hood and tighten down screws (1).
Install and tighten down screws (2).
Installation:
Adjust headlights. See 63 10 004 Adjusting headlights
