63 10 004 Adjusting headlights
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
Observe test preconditions for headlight adjustment, refer to ADJUSTING HEADLIGHT FOR RHD/LHD VEHICLES Test precondition.

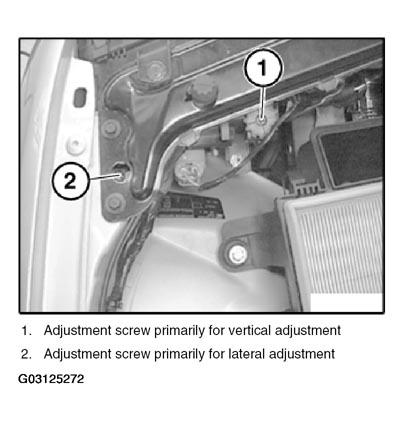

Adjust headlights by turning adjusting screws (1) and (2). A definite allocation of adjusting screws is not possible. Both directions are always adjusted differently.
