Removal & Installation (6-Cylinder)

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

To remove exhaust camshaft sensor, go to next step. To remove intake camshaft sensor, remove intake air filter housing. Remove VANOS adjustment solenoid valve located next to oil filter housing. See 11 36 570 REPLACING SOLENOID VALVE FOR INLET SIDE ON VANOS ADJUSTMENT UNIT . Disconnect sensor electrical connector. Remove sensor screw. Remove sensor from cylinder head. See Fig 1. To install, reverse removal procedure. Replace sealing ring as necessary.
Disconnect exhaust camshaft sensor connector on front of cylinder head. Remove sensor screw. Remove sensor from cylinder head. See Fig 2. To install, reverse removal procedure. Replace sealing ring as necessary.

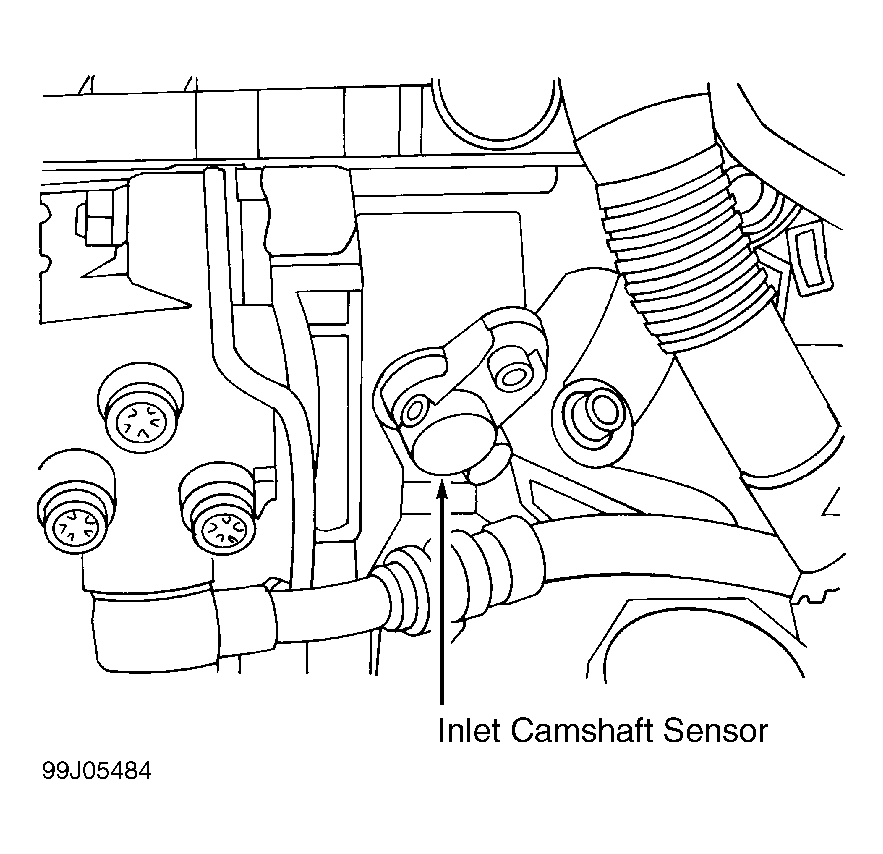

Fig 1: Removing Intake Camshaft Sensor (E46)

Courtesy of BMW OF NORTH AMERICA, INC.

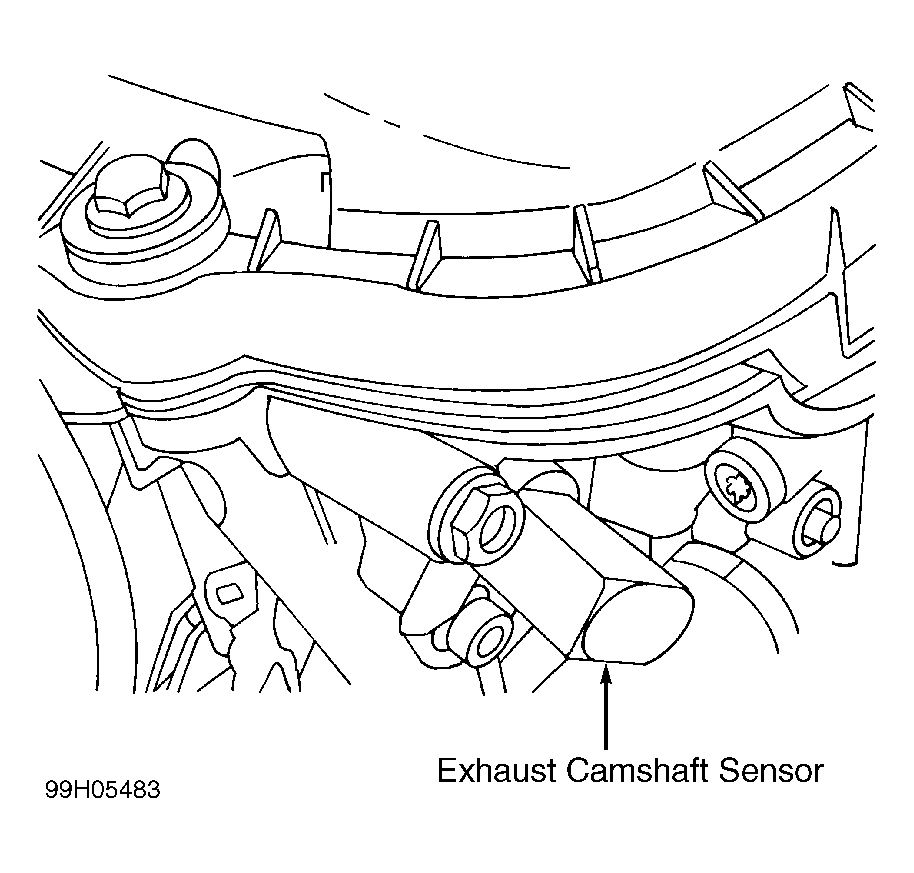

Fig 2: Removing Exhaust Camshaft Sensor (E46)

Courtesy of BMW OF NORTH AMERICA, INC.
