Adjusting the camshafts with the special tool

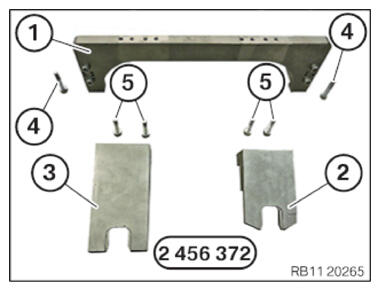

- Keep set of special tools 2 456 372
at hand:

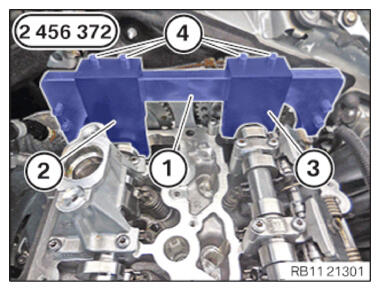

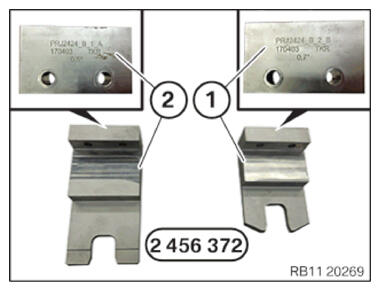

Number Description 1 Basic carrier 2 Setting gauge for adjusting the intake camshaft 3 Setting gauge for adjusting the exhaust camshaft 4 Basic carrier screws on cylinder head 5 Screw gauge on basic carrier - Use the setting gauge 0.7° (1) from the special tool kit 2 456 372 to adjust the intake camshaft.
- Use the setting gauge 0.5° (2)
from the special tool kit 2 456 372
to adjust the exhaust camshaft.

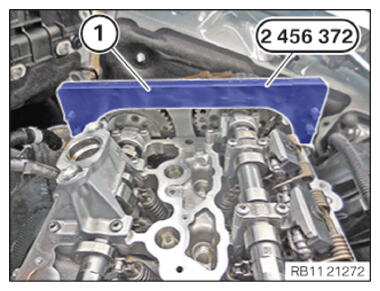

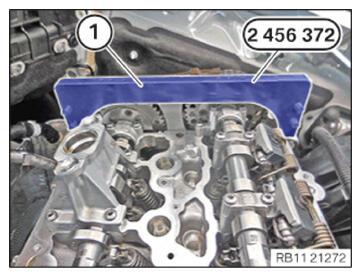

- Position the basic carrier (1)
from the set of special tools 2 456 372
on the cylinder head.

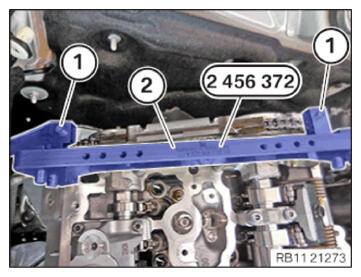

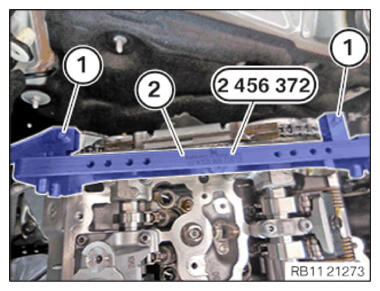

- Tighten the screws (1) from special tool set 2 456 372 on the basic carrier (2) .
TIGHTENING TORQUES SPECIFICATION
| Basic carrier to cylinder head | ||
| M6 | Tightening torque | 8 Nm |

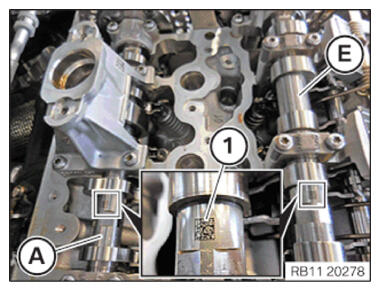

- Turn the intake camshaft (E)
and the exhaust camshaft (A)
to the correct position so that the markings (1)
can be read from above.

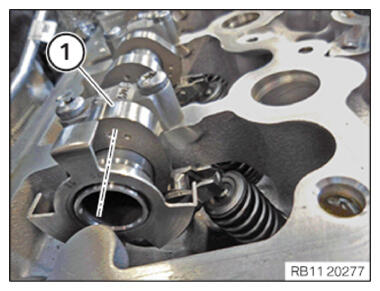

- Make sure the cam (1)
on the exhaust camshaft on cylinder 1
is pointing slightly to the inside right at an angle.

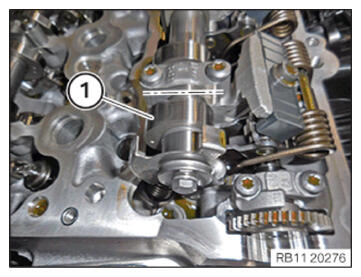

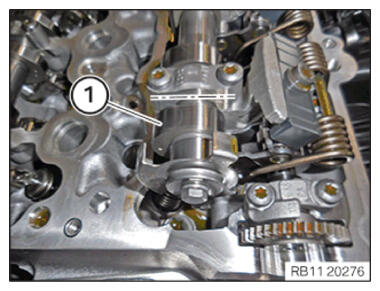

- Make sure the cam (1)
on the intake camshaft on cylinder 1
is pointing leftwards at an angle.

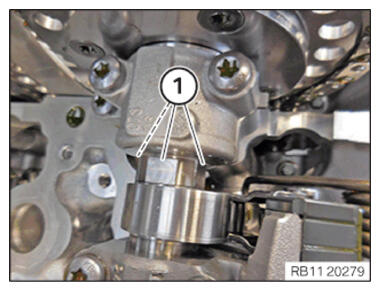

- Make sure the flattened areas (1)
on the intake camshaft and the exhaust camshaft are pointing upwards at an angle.
- Position the setting gauge 0.5° (2) from the set of special tools 2 456 372 between the exhaust camshaft and the basic carrier (1) from the set of special tools 2 456 372 .
- Position the setting gauge 0.7° (3) from the set of special tools 2 456 372 between the intake camshaft and the basic carrier (1) from the set of special tools 2 456 372 .
- Tighten down screws (4) .
TIGHTENING TORQUES SPECIFICATION
| Test gauge to basic carrier | ||
| M6 | Tightening torque | 8 Nm |
