Replacing front crankshaft seal

Removing the front crankshaft seal

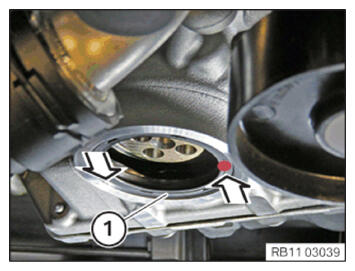

• Drive in the crankshaft seal (1) in the marked area with a punch to approx. 1 cm deep.

  Courtesy of BMW OF NORTH AMERICA, INC.

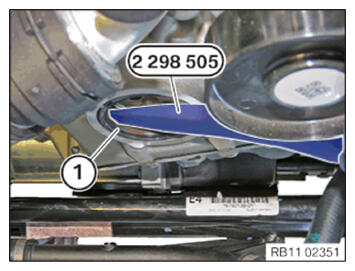

• Lever out the crankshaft sealing ring (1) with the special tool 2 298 505 .
• Make sure that the sealing surface on the crankcase is not  scratched.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the front crankshaft seal

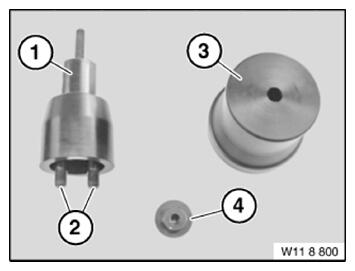

• Prepare special tool 0 496 130 (11 8 803) .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean the special tool 0 496 128 (11 8 801) from the set of special tools 0 496 127 (11 8 800) and coat it with motor oil.

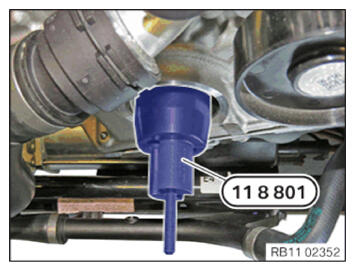

• Secure special tool 0 496 128 (11 8 801) to the crankshaft using special tool  0 496 129 (11 8 802)  from the set of special tools  0 496 127 (11 8 800)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Radial shaft seal damage  .
  Taping the sealing lip (inner) and applying oil to the radial shaft seal will lead to its destruction  .

  • Do not tap the sealing lip (inner) of the radial shaft seal.
  • Do not apply oil to the radial shaft seal.
  • Install the radial shaft seal dry.

  Courtesy of BMW OF NORTH AMERICA, INC.

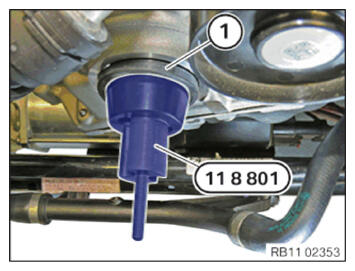

  • Carefully slide the crankshaft sealing ring (1) straight in a rotational movement  onto the special tool 0 496 128 (11 8 801) from the set of special tools 0 496 127 (11 8 800) until the crankshaft sealing ring (1) is positioned flush against the crankcase.

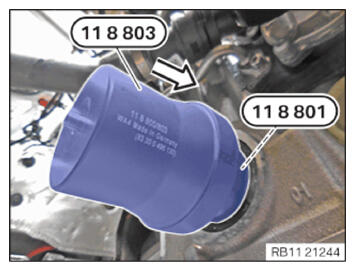

• Mount the special tool 0 496 130 (11 8 803) on special tool 0 496 128 (11 8 801) of the set of special tools 0 496 127 (11 8 800) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

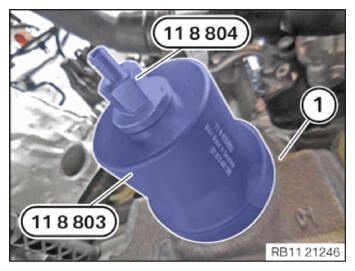

• Screw in the special tool (sleeve)  0 496 130 (11 8 803)  using the special tool  0 496 131 (11 8 804)  from the set of special tools 0 496 127 (11 8 800) and a suitable tool until the sleeve is positioned flush against the crankcase (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

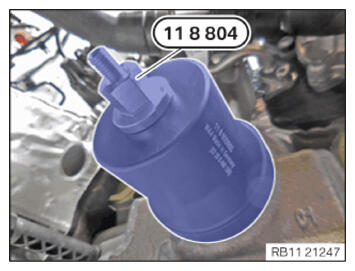

• Release the special tool 0 496 131 (11 8 804) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

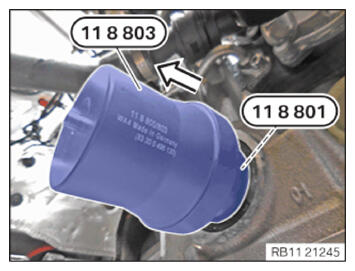

• Feed out and remove the special tool  0 496 130 (11 8 803)  on the special tool  0 496 128 (11 8 801)  of the set of special tools  0 496 127 (11 8 800)  in arrow direction  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the special tool 0 496 129 (11 8 802) .
• Feed out and remove the special tool  0 496 128 (11 8 801) 0 496 129 (11 8 802)  on the  crankshaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

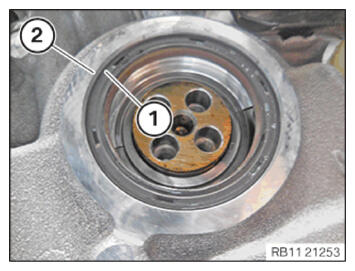

• Check the crankshaft sealing ring (1) for correct installation on the crankcase (2).

Courtesy of BMW OF NORTH AMERICA, INC.
