Removing all intermediate levers

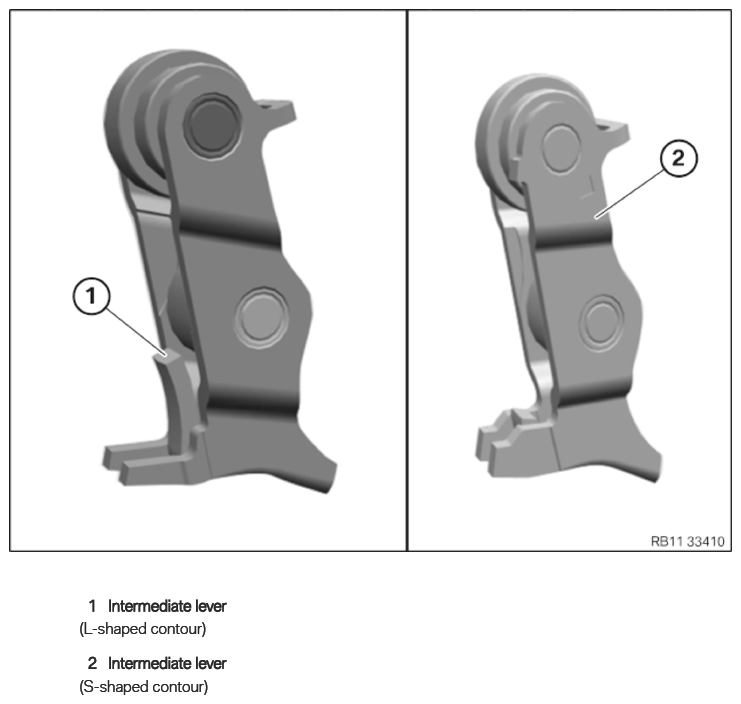

Intermediate lever
NOTE:
TECHNICAL INFORMATION
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring.
For further information on possible combinations, see the applicable BMW parts catalogue.
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring.
For further information on possible combinations, see the applicable BMW parts catalogue.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
- Remove the intermediate lever (1)
and arrange it in the special tool 0 495 105 (11 4 480)
in order.
