Removing the component carrier
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
Preliminary work
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE FRONT HOOD SEAL .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING UPPER CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING CLEAN AIR PIPE .
- Refer to REMOVING THE FAN COWL .
- Refer to REMOVING CHARGE AIR LINE .
- Refer to REMOVING THE THROTTLE BODY .
- Refer to REMOVING THE DRIVE BELT FOR ALTERNATOR .
- Refer to REMOVING THE ALTERNATOR .
- Refer to REMOVING THE AIR CONDITIONING COMPRESSOR .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to IF INSTALLED: REMOVING THE UNDERBODY PROTECTION OF THE STEERING SYSTEM .
- Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
- Refer to CONNECTING THE COOLANT LINE TO THE HIGH-TEMPERATURE COOLANT RADIATOR .
- Refer to REMOVING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND CYLINDER HEAD .
Component carrier
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Unlock and loosen coolant line (1).
- Catch and dispose of leakage coolant.
- Loosen clamp (1).
- Loosen screws (1).
- Loosen screws (1).
- Feed out the holder (2) for the engine and transmission oil line and set aside.

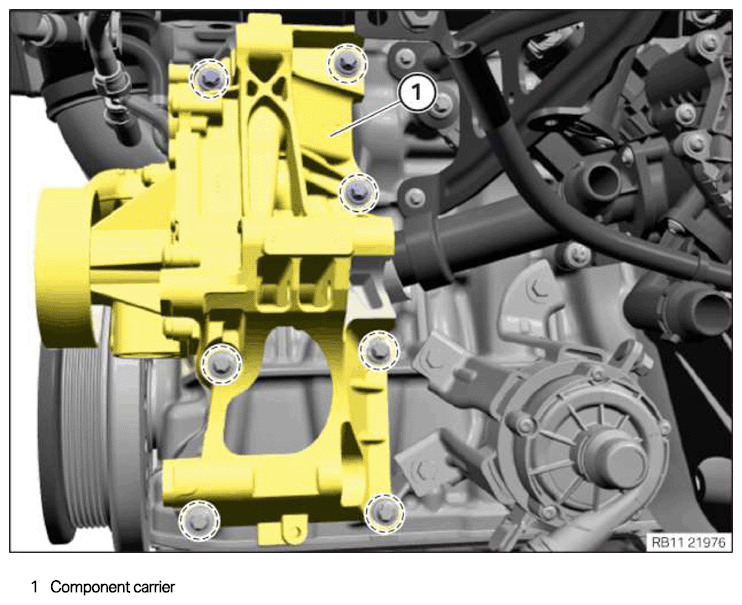

- Loosen screws (1).
- Guide the component carrier (1) out of the connecting pipe (2) and remove.
- Catch and dispose of leakage coolant.
