Installing coolant pumps
CAUTION:
Component with preload
.
Injury hazard!
Injury hazard!
- Reduce preload as far as possible before disassembly. Relieve component.

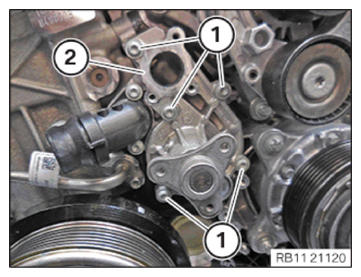

- Feed in and install the coolant pump (2).
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Coolant pump to component carrier M6x20 Tightening torque 8 ± 1 Nm - Replace the belt pulley (1).
Parts: Belt pulley
The belt pulley (1) is included in the repair kit,
- Feed in and install the belt pulley (1).
- Replace the bolts (arrows).
Parts: Screws
The screws (arrows) are included in the repair kit.
- Hand-tighten the screws (arrows).

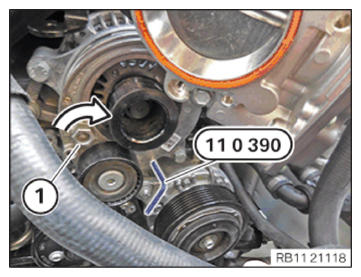

- Using standard tools, increase the preload on the belt tensioner (1) in the arrow direction .
- Secure the belt tensioner with the special tool 0 496 268 (11 0 390)
.
Follow-up work
- Refer to INSTALLING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND CYLINDER HEAD .
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to TIGHTENING BELT PULLEY .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
- Refer to ATTACHING THE ELECTRIC AUXILIARY COOLANT PUMP FOR THE CHARGE AIR COOLER AND/OR AIR CONDITIONING CONDENSER .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
