Installing the coolant line from coolant radiator to coolant pump

• Check sealing ring (1) of coolant line (2) for damage and, if necessary, replace it.

  Courtesy of BMW OF NORTH AMERICA, INC.

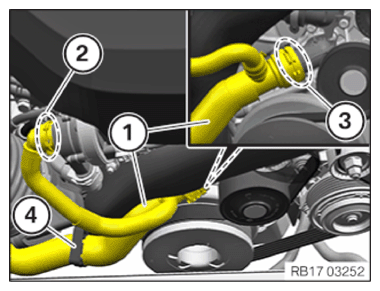

• Guide in the coolant line (1) and install it.
• Connect and lock the coolant line (1) in the marked area (3).

  The coolant line (1) must engage audibly.

• Connect and lock the coolant line (1) in the marked area (2).

  The coolant line (1) must engage audibly.

• Secure coolant line (1) in holder (4).
• Lock the holder (4).

  The holder (4) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
