Installing the radiator of the high-temperature coolant circuit

• Feed in the radiator (1) of the high-temperature coolant circuit carefully  in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the radiator (1) of the high-temperature coolant circuit in the lower area into the holder (2) in the arrow direction and install it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Bring the radiator (1) of the high-temperature coolant circuit up to contact surface in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

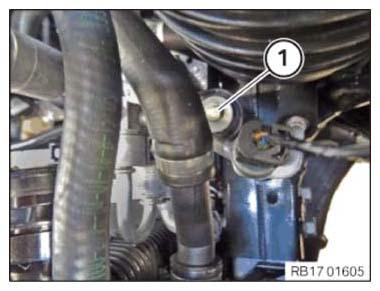

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Radiator on holder
  Screw D6x20	tightening torque	6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

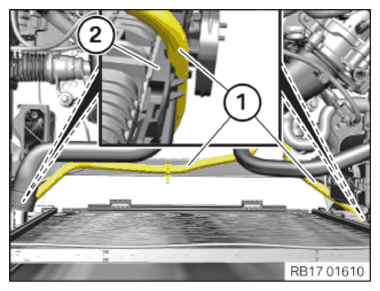

• Version with automatic transmission:

  Feed in the transmission oil lines (1) at left and right on the brackets (2) and install.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the sealing ring (1) of the coolant line (2) for damages, and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Make sure that the connections are locked correctly. The locks must engage audibly.

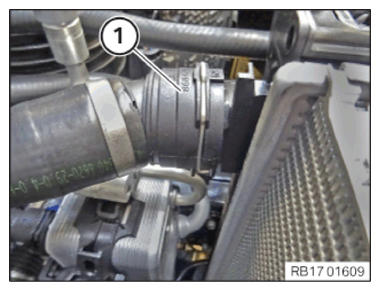

• Connect and lock the coolant line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Make sure that the connections are locked correctly. The locks must engage audibly.

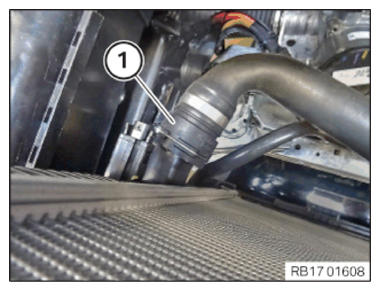

• Connect and lock the coolant line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide the air conditioning condenser (1) into the rubber mount (2) in the arrow direction and install it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Air conditioning condenser holder on body
  Nut M6	tightening torque	8 Nm
  M6 screw	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide in and install the cover (2) on the top.
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
