Remove the instrument cluster control unit (KOMBI)
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
Preliminary work
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to REMOVING THE GAP COVER .
- Refer to REMOVING THE INSTRUMENT CLUSTER .

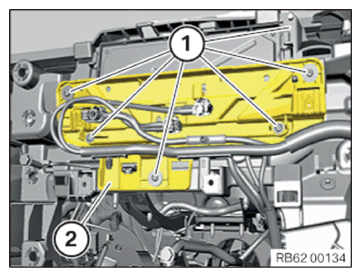

- Loosen screws (1).
- Remove the control unit holder (2).

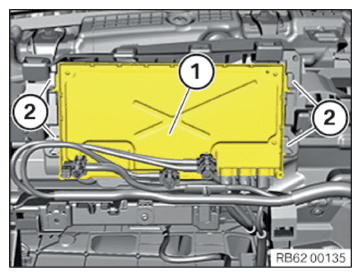

- Pull the control unit for the instrument cluster (KOMBI) (1) downwards out of the guides (2).

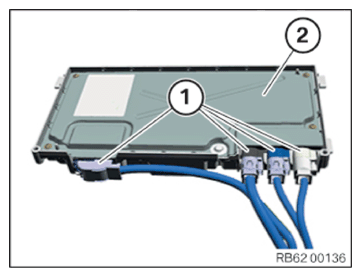

- Unlock all plug connections (1) on the control unit for the instrument cluster (KOMBI) and disconnect.
