Installing The Left And Right Tailgate Hinges
NOTE:
Description is for left component only. Procedure on the right side is identical.

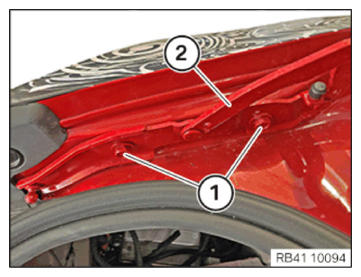

- Install the tailgate hinge (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
Tailgate hinge to body Hexagon screw Tightening torque 19 Nm
Follow-up work
- Refer to INSTALLING THE TAILGATE .
- Refer to 51 24 300 REMOVING AND INSTALLING/REPLACING THE GAS PRESSURE SPRING FOR TAILGATE ON THE LEFT OR RIGHT
- Refer to ADJUSTING THE TAILGATE .
- Refer to INSTALLING THE TAILGATE TRIM PANEL .
