Installing The Right Engine Compartment Lid Hinge

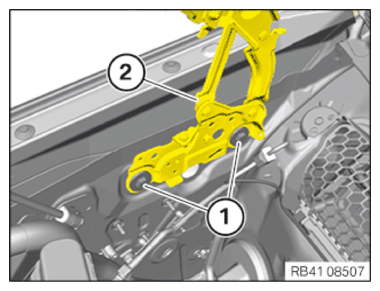

• Position the hood hinge (2).
• Tighten the screws (1).

  TIGHTENING TORQUE SPECIFICATION

  Engine compartment lid hinge to body
  screw	Tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

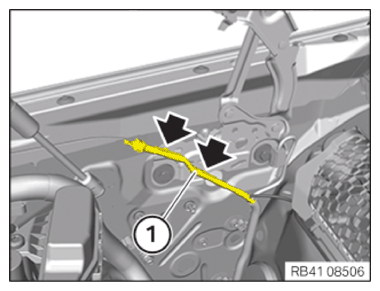

• Clip the hose pipe (1) into the attachment points (arrows) on the hinge.

  Courtesy of BMW OF NORTH AMERICA, INC.

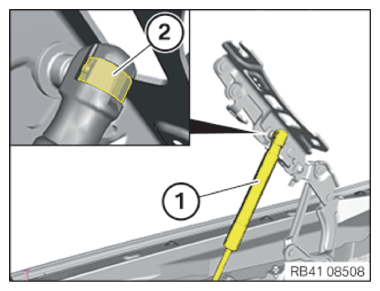

• Position and press in the gas spring (1) on the ball head.

  Ensure the clamp (2) locks correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to 51 23 400 REMOVING AND INSTALLING/REPLACING THE LEFT OR RIGHT ACTUATOR Installing the actuator on the right hood hinge
• Refer to INSTALL HOOD .
• Refer to ADJUSTING THE HOOD HINGE .
• Refer to INSTALLING THE RIGHT WATER DRAIN CHANNEL .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALL LEFT AND RIGHT WIPER ARM .
• Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to ADJUSTING HOOD .
• Refer to ACTIVATE ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
