Replace Hood

Preliminary work

• Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to DEACTIVATE ELECTRICAL SYSTEM .
• Refer to REMOVE THE DAMPING MATERIAL ON THE HOOD .
• Refer to REMOVING THE HOOD STRIKER .
• Refer to REMOVE HOOD .

Precondition

New part is painted.

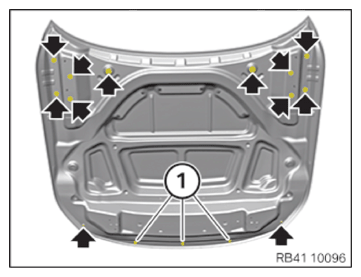

• Remove all plugs (arrows).
• Remove the stop pad (1)  .
• Renew the hood.

  Parts:  Hood

• Install all plugs (arrows).
• Install the stop pad (1)  .
• Stick the information labels on the hood.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL HOOD .
• Refer to ADJUSTING HOOD .
• Refer to INSTALLING THE HOOD STRIKER .
• Refer to ADJUST THE STRIKER ON THE HOOD .
• Refer to INSTALLING THE DAMPING LAYER ON THE HOOD .
• Refer to ACTIVATE ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
