Removing The Outer Section Of The A-Pillar

NOTE: TECHNICAL INFORMATION

Observe the procedure for repair stage 3.

For additional information see: 41 00... Repair method for repair stage 3

For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.

Preliminary work

Refer to SUPPLYING THE NEW PARTS REQUIRED .

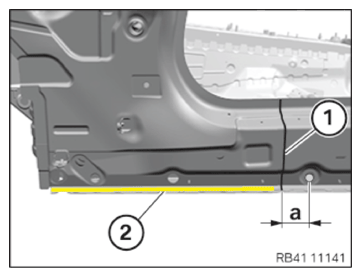

Mark and carry out the separating cut (1) as per dimension a. Thereby disconnect only the outer panel. Dimension a = 67 mm from the center of the hole with Ø 20 mm.
Open welded connections in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Mark the separating cut (1) as shown and carry it out. Disconnect only the outer panel.
Open welded connections in area (2).

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections

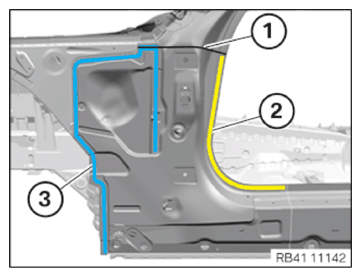

Release the spot-welded adhesive joints in area (3).

Courtesy of BMW OF NORTH AMERICA, INC.

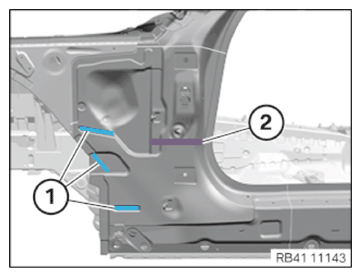

Release adhesive bonds in areas (1).
Release the outer section of the A-pillar from the cavity sealing (2) and remove.
