Supplying the new parts required
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

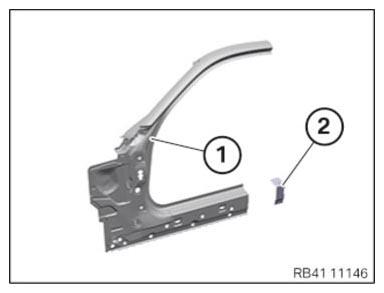

- Prepare the following new parts (see applicable BMW parts catalogue):
A-pillar, outer (1)
2 x door sill reinforcement plate (2)
NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW WORKSHOP EQUIPMENT) . - Supply the following consumables:
| Material | Quantity |
|---|---|
| Coarse thread bolt | 5 |
| Sealing compound D2 |

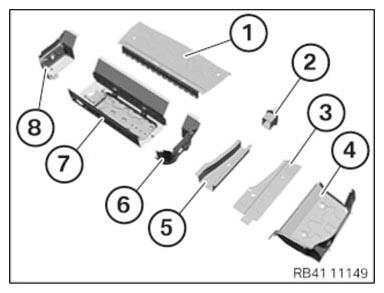

- Prepare the following new parts (see applicable BMW parts catalogue
):
Rear luggage compartment floor (1)
Rear bumper bracket (2)
Extension piece of top side member (3)
Boot floor (4)
Extension piece of bottom side member (5)
Luggage compartment well, left (6)
Luggage compartment well (7)
Luggage compartment well, right (8)
NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW WORKSHOP EQUIPMENT) . - Supply the following consumables:
| Material | Quantity |
|---|---|
| Adhesive K5 (50 ml) | 1 |
| Blind rivet N3 | 15 |
| Punch rivet N4 | 4 |
| Coarse thread bolt | 25 |
| Threaded weld bolt | 5 |
| EMC screw | 3 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Sealing compound D2 | 1 |
| Cavity protection wax remover |
- Prepare the following new parts (see applicable BMW parts catalogue
):
Outer A-pillar (1)
Reinforcement plate, door sill (2)
NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW WORKSHOP EQUIPMENT) . - Supply the following consumables:
| Material | Quantity |
|---|---|
| Adhesive K5 (50ml) | 1 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Coarse thread bolt | 5 |
| Sealing compound D2 | 1 |
