Installing the rear brake disc
NOTE:
TECHNICAL INFORMATION
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.
- Thoroughly clean the contact surface of the wheel hub and remove traces of corrosion if necessary.
Irregularities in the contact surface can cause distortion in the brake disc!
- Mount brake disk (2).
- Position and tighten the screw (1).
- Replace screw.
Parts: Screw
TIGHTENING TORQUE SPECIFICATIONBrake disc to rear wheel hub M8

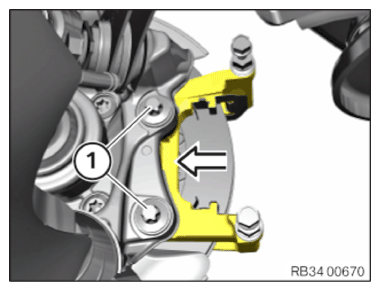

Replace screw.tightening torque 16 Nm - Mount brake anchor plate.
- Insert screws (1) and tighten.
- Replace screws.
Parts: Screws
TIGHTENING TORQUE SPECIFICATIONBrake anchor plate to rear wheel carrier M12
Replace screw.tightening torque 130 Nm
Follow-up work
- Refer to GREASING THE BRAKE PADS, THE BRAKE ANCHOR PLATE AND THE BRAKE CALIPER WITH BRAKE PAD PASTE .
- Refer to INSTALLING REAR BRAKE PADS .
- Refer to INSTALLING THE REAR BRAKE PAD WEAR SENSOR .
- Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
- Refer to START-UP OR BEDDING IN BREAK-IN OF NEW BRAKE PADS AND ROTORS (REAR BRAKE) .
