Installing the center rear seat backrest

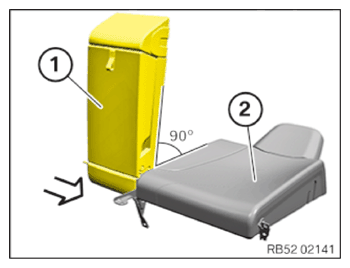

• Position the center rear seat backrest (1) at a 90° angle to the left rear seat backrest (2).
• Correctly position and guide the center rear seat backrest (1) into the left rear seat backrest (2) in the arrow direction.
• Lock the center rear seat backrest (1) with the left rear seat backrest (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

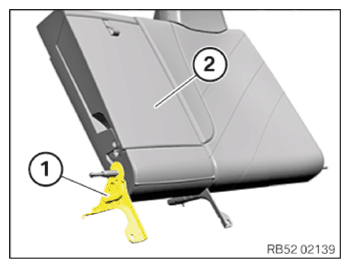

• Position central mount (1) of the center rear seat backrest (2) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LEFT AND CENTER REAR SEAT BACKREST .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to INSTALLING THE REAR SEAT BACKREST .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
