Installing the left and center rear seat backrest
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

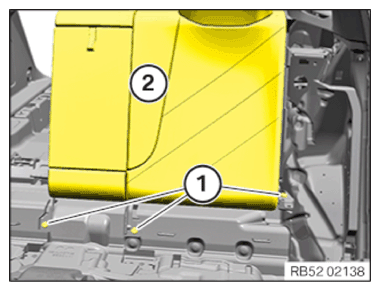

- Position the rear seat on the left and center (2) with the help of a support person as shown.
- Replace screws (1).
Parts: Screws
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Rear seat backrest on body | ||
| screw Replace screw. |
Tightening torque | 42 Nm |

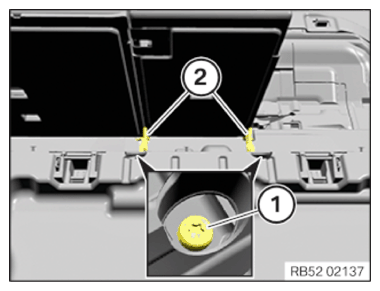

- Check the correct position of central mounts (2).
- Replace screws (1).
Parts: Screws
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Rear seat backrest on body | ||
| screw Replace screw. |
Tightening torque | 42 Nm |
