Remove the tail light on the right side panel
Preliminary work
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to PARTIALLY REMOVING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE TRIM OF THE RIGHT WATER CHANNEL .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the tail light on the side panel
- Release nut (1).
- Release nuts (1).

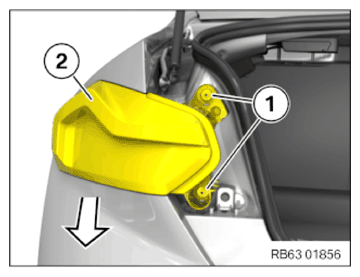

- Feed out the tail light (2) in the arrow direction.

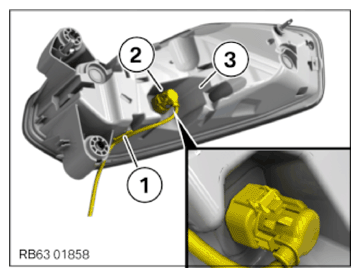

- Remove the wiring harness with the holder (1).
NOTE:
TECHNICAL INFORMATION
Observe the note on unlocking and disconnecting plug connections.
For additional information see: UNLOCKING AND DISCONNECTING DIFFERENT PLUG CONNECTIONS , or UNLOCKING AND DISCONNECTING VARIOUS PLUG CONNECTIONS IN ELECTRICAL AND HYBRID VEHICLES .
Observe the note on unlocking and disconnecting plug connections.
For additional information see: UNLOCKING AND DISCONNECTING DIFFERENT PLUG CONNECTIONS , or UNLOCKING AND DISCONNECTING VARIOUS PLUG CONNECTIONS IN ELECTRICAL AND HYBRID VEHICLES .
- Unlock plug connection (2) and disconnect.
- Remove tail light (3).
