Replacing The Front Door
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DEACTIVATE ELECTRICAL SYSTEM .
- Refer to REMOVE FRONT DOOR TRIM PANEL .
- Refer to 51 16 026 REPLACE MIRROR GLASS FOR EXTERIOR VEHICLE MIRROR
- Refer to REMOVING EXTERIOR MIRROR .
- Refer to REMOVE OUTER WINDOW CHANNEL STRIP .
- Refer to REMOVING THE DOOR WELL COVER FROM THE FRONT DOOR .
- Refer to RELEASE THE FRONT DOOR WINDOW GLASS .
- Refer to REMOVE THE MODULE BRACKET FROM THE FRONT DOOR .
- Refer to REMOVING FRONT DOOR WINDOW GLASS .
- Refer to REMOVING THE POWER ELECTRIC WINDOWS OF THE FRONT DOOR .
- Refer to REMOVE THE WINDOW CHANNEL STRIP FROM THE INNER FRONT DOOR .
- Refer to REMOVE FRONT DOOR HANDLE .
- Refer to REMOVING THE OUTSIDE DOOR HANDLE SUPPORT WITH THE LOCK CYLINDER .
- Refer to REMOVING THE DOOR CHECK OF THE FRONT DOOR .
Precondition
New part is painted.
- Pull up lock (1) and disconnect plug connection (2).

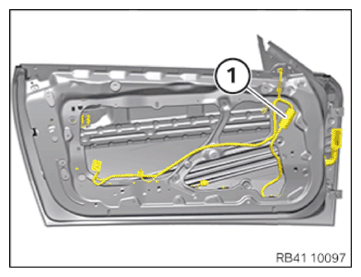

- Release the wiring harness (1) from door.
- Loosen grommet (1).
- Feed the wiring harness out of the door.
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
- Secure front door against falling.
- Release screws (1) and remove the door.
- Renew the door.
Parts: Door
- Secure front door against falling.
- Position front door at the door hinges.

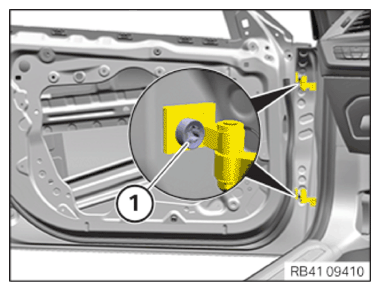

- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
Front door to door hinge screw Tightening torque 40 Nm
- Carefully close front door.
- Check the front door for bodywork contact and, if necessary, position it again.
- Guide the wiring harness into the front door.
- Mount the nozzle (1) and check for correct fit.
- Attach wiring harness (1) to the door.
- Connect plug connection (1) and press down lock (2).
- Remount the seal (1).
- Remount the clamps (1).
- Remount the expansion nut (1).
- Remount holding clip (2).
Follow-up work
- Refer to Preserving the front door
- Refer to INSTALL THE DOOR CHECK OF THE FRONT DOOR .
- Refer to INSTALLING THE SEAL .
- Refer to INSTALLING THE OUTSIDE DOOR HANDLE SUPPORT WITH THE LOCK CYLINDER .
- Refer to INSTALL THE FRONT DOOR HANDLE .
- Refer to INSTALLING THE DOOR WELL COVER ON THE INSIDE OF THE FRONT DOOR .
- Refer to INSTALLING THE POWER ELECTRIC WINDOWS OF THE FRONT DOOR .
- Refer to INSTALLING FRONT DOOR WINDOW GLASS .
- Refer to INSTALLING THE MODULE BRACKET ON THE FRONT DOOR .
- Refer to INSTALLING THE WEATHER STRIP ON THE FRONT DOOR .
- Refer to FIT VEHICLE EXTERIOR MIRROR .
- Refer to 51 16 026 REPLACE MIRROR GLASS FOR EXTERIOR VEHICLE MIRROR
- Refer to INSTALLING THE FRONT DOOR TRIM PANEL .
- Refer to ACTIVATE ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ADJUSTING LEFT FRONT DOOR .
- Refer to ADJUSTING THE FRONT DOOR WINDOW GLASS .
- Refer to INSTALL OUTER WINDOW CHANNEL STRIP .
