Remove Headunit High (HU-H)
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING CUP HOLDER .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT TRIM .
- Refer to REMOVING THE CENTER CONSOLE TRIM .
- Refer to REMOVING THE DECORATIVE TRIM ON THE CENTER CONSOLE ON THE LEFT AND RIGHT .
- Refer to REMOVING THE WIRELESS CHARGING STORAGE .
- Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .
- Refer to REMOVING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
- Refer to REMOVING THE AUDIO CONTROL UNIT .
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
NOTE:
RISK OF DAMAGE
Damage to the head unit.
The hard disk of the head unit can be damaged by vibrations.
Damage to the head unit.
The hard disk of the head unit can be damaged by vibrations.
- Carry out mechanical work on the head unit and adjacent components with care.

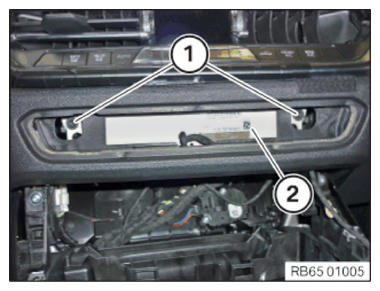

- Release the screws (1) on head unit (2).
- Pull the head unit (2) a little to the rear and tilt downwards.

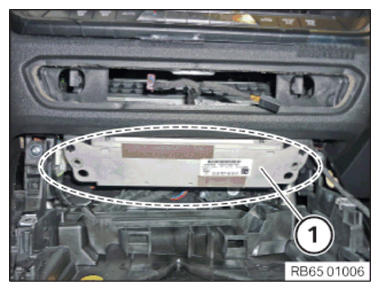

- Feed out the head unit (1) as shown through the marked one until the connectors behind that are accessible.

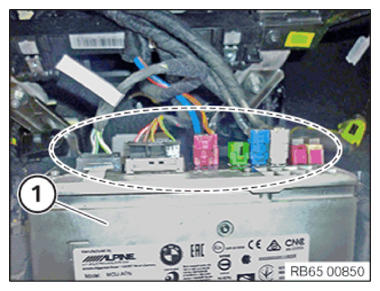

- Unlock and disconnect all the plug connections in the marked area.
- Remove the head unit (1).
