Installing the rear timing case cover

Courtesy of BMW OF NORTH AMERICA, INC.

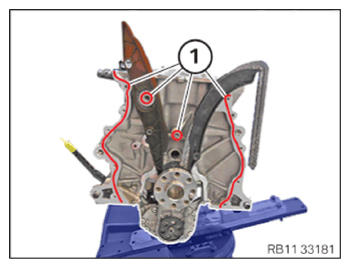

• Clean sealing surfaces (1)  with special tool 0 495 102 (11 4 470) .
• Clean the sealing surface (1)  with brake cleaner.

Brake cleaner 2.0	500 ml, Spray can	83192365214
	20, Canister	83192365215

Courtesy of BMW OF NORTH AMERICA, INC.

• Clean sealing surfaces (1)  with special tool 0 495 102 (11 4 470) .
• Clean the sealing surface (1)  with brake cleaner.

Brake cleaner 2.0	500 ml, Spray can	83192365214
	20, Canister	83192365215

• Position the timing case cover (1)  underneath.
• Position punch on inner side of crankshaft sealing ring (2)  .
• Remove the crankshaft sealing ring (2)  outwards in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the fitting sleeves (1)  for damage, replace if necessary.
• Check for correct fit of fitting sleeves (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Have the special tool 2 469 803 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the sealing compound (1)  as shown on the special tool 2 469 803 .

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

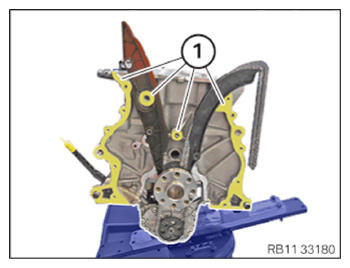

• Apply the sealant in areas (1)  along the inner edge.

Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature

50 ml, Cartridge

83190404517

Height of the sealing bead
2.0 mm... 2.5 mm

• Replace screws (1)  to (11)  .

  Parts:  Screws

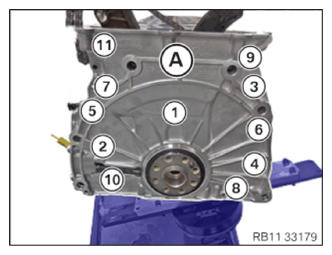

• Carefully mount the timing case cover (A)  .
• Tighten the screws in the sequence (1)  to (11)  with the special tool 0 490 504 (00 9 120) .

Rear timing case cover on crankcase
M6 x 27 Replace screws.	Joining torque	4 Nm
	Angle of rotation	90°

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

• Install special tool 0 496 137 (11 8 815)  on the crankshaft.
• Pull off crankshaft sealing ring (1)  in the arrow direction using special tool 0 496 137 (11 8 815)  so that crankshaft sealing ring (1)  rests all around the timing case cover.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide the special tool 0 496 137 (11 8 815)  out and remove.
• Secure special tool 0 494 029 (11 9 182)  to the crankshaft using special tool 0 494 031 (11 9 184)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect special tool 2 360 215  to special tool 0 494 028 (11 9 181)  in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position special tools 0 494 028 (11 9 181)  and 2 360 215  and bring into contact with the crankshaft seal in connection with special tool 0 494 030 (11 9 183)  .
• Check the freedom of movement between the special tool 2 360 215  and the crankshaft sensor during installation.
• Screw in the crankshaft sealing ring up to the stop of the timing case cover using special tool 2 360 215  .

Courtesy of BMW OF NORTH AMERICA, INC.
