Install the center console
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

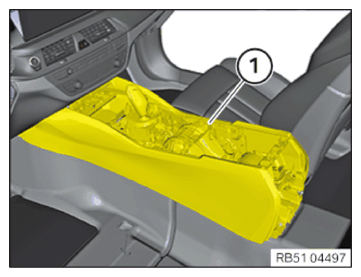

- Install center console (1) from top rear and feed in the wiring harness.
- Check for correct cable routing under the center console (1)
.

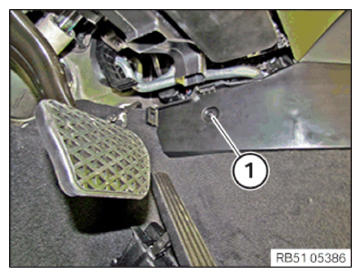

- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Center console to holder | ||
|---|---|---|
| M6x40 screw | Tightening torque | 4.6 Nm |
| Hexagon nut | Tightening torque | 4.6 Nm |

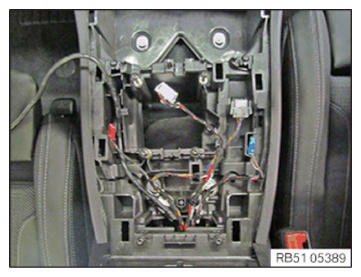

- Secure the wiring harness on the center console.

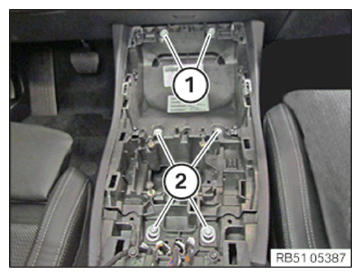

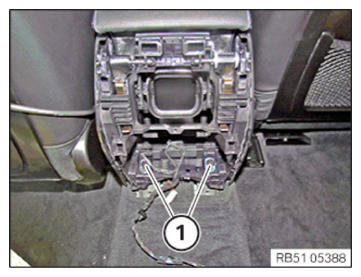

- Tighten the nuts (1) and bolts (2) .
TIGHTENING TORQUES SPECIFICATION
| Center console to holder | ||
|---|---|---|
| M6x40 screw | Tightening torque | 4.6 Nm |
| Hexagon nut | Tightening torque | 4.6 Nm |
Follow-up work
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
