Body Equipment -- Repair (F98)
>>
51 16 Mirrors, Consoles, Interior Trim
>>
51 16 163 Removing and installing rear center console trim
>>
Installing the rear center console trim
Installing the rear center console trim
Position the rear center console trim
(1)
.
Connect associated connector.
The connectors must engage audibly.

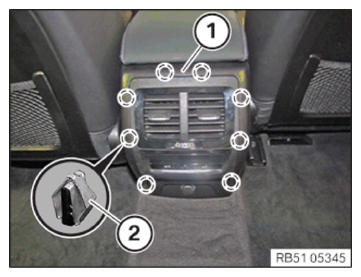

Clip in the center console trim on the rear
(1)
at the clamps
(2)
.
