Installing the hydraulic unit

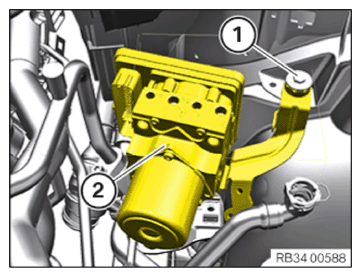

- Position hydraulic unit (2) .
- Replace the screw (1)
.
Parts: Screw.
- Position and tighten the screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Hydraulic unit with holder on body | ||
|---|---|---|
| Replace screws. | tightening torque | 8 Nm |
NOTE:
TECHNICAL INFORMATION
Do not interchange brake lines. If necessary, mark the brake lines before disassembly.
Note various equipment specifications with different line seizure.
Do not bend brake lines.
Close off connecting bores with seal plugs.
Do not interchange brake lines. If necessary, mark the brake lines before disassembly.
Note various equipment specifications with different line seizure.
Do not bend brake lines.
Close off connecting bores with seal plugs.

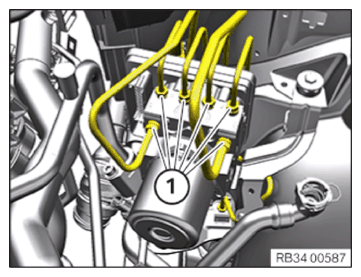

- Fit brake lines (1) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Brake pipe screw connection/Union screws | ||
|---|---|---|
| tightening torque | 17 Nm | |

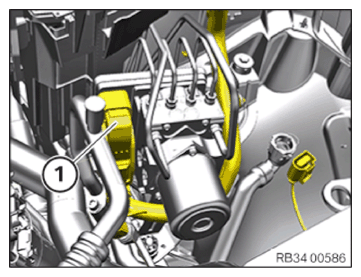

- Connect connector (1) .
Follow-up work
- Refer to INSTALLING THE LEFT FRONT-END STRUT .
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH TRIM .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE BRAKE PEDAL TENSIONER .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
- Refer to FLUSH AND VENTING THE REAR AXLE BRAKE CIRCUIT .
- Refer to FLUSH AND BLEEDING THE FRONT AXLE BRAKE CIRCUIT (BRAKE HIGH) .
- Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to DSC UNIT START-UP/DRIVING DYNAMICS SENSOR ADJUSTMENT .
