Installing the hydraulic unit

NOTE: TECHNICAL INFORMATION
Maintain conditions of absolute cleanliness

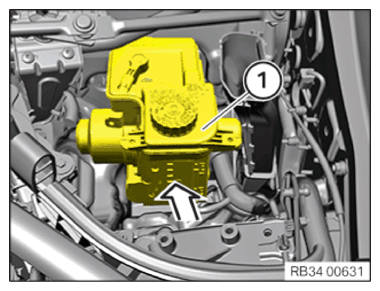

Position hydraulic unit (1)

Courtesy of BMW OF NORTH AMERICA, INC.
Replace nuts
Parts: Nuts

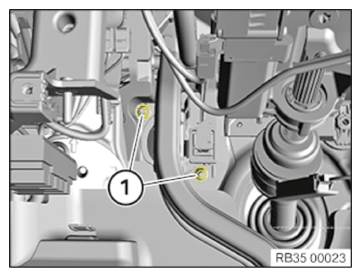

Install the nuts (1) and tighten

TIGHTENING TORQUE SPECIFICATION

Hydraulic unit to pedal bracket Replace nuts
M8 1x retightening at hydraulic unit after 10 min	tightening torque	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

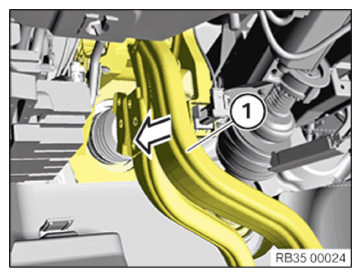

Lock brake pedal (1) in place in the arrow direction with the brake booster
Ensure that the brake pedal is completely locked with the brake booster!

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Do not interchange brake lines. Mark the brake lines before disassembly (for example, VL/VR/HR/HL)
Do not bend brake lines
Close off connecting bores with seal plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Fit brake lines (1) and tighten

TIGHTENING TORQUE SPECIFICATION

Brake pipe screw connection/Union screws
	tightening torque	17 Nm

Connect connector (1)

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connector (1)
Install the cable clip (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
Refer to FLUSH THE REAR BRAKE AND AIR BLEED (AFTER PART EXCHANGE) .
Refer to FLUSHING AND BLEEDING FRONT BRAKES (AFTER PART EXCHANGE) .
Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID (AFTER PART EXCHANGE) .
Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
Refer to RECONNECTING ALL BATTERY GROUND LEADS .
Refer to FUNCTIONAL CHECK OF INTEGRATED BRAKE SYSTEM .
Refer to DSC UNIT START-UP/DRIVING DYNAMICS SENSOR ADJUSTMENT/CONTROL UNIT PROGRAMMING .
