Installing windshield
- Installing the left and right water guide element
- Check the water guide element (1) on the left and right for damage and replace if necessary
Do not mix up the left and right water pipe element
- Clean the bonding surface with cleaning agentCONSUMABLE SPECIFICATION

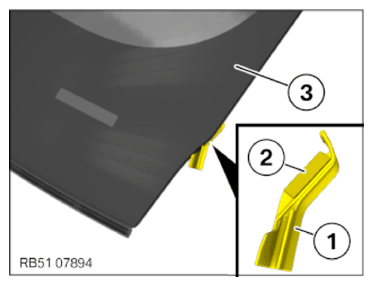

Cleaning agent R2 500 ml 83190417324 - Detach the liner (2) from the water guide element
(1) and position on the windshield (3)

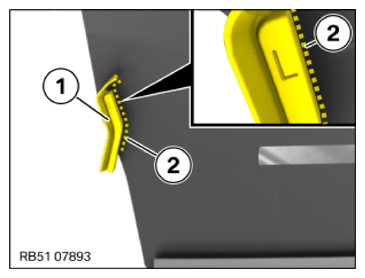

- Position the water guide element (1) on the mark
(2) and press firmly
NOTE: Perform the steps on the right and left side - Prepare the glue cartridge with the standard nozzle C

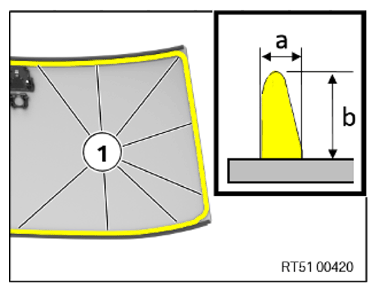

- Apply an adhesive bead within the marks (1) on the windshield

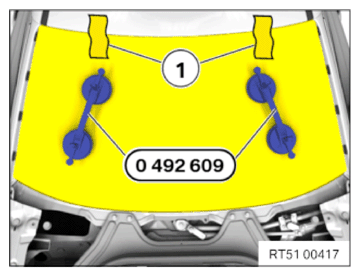

- Carefully feed in the windshield with the special tool 0 492 609 (51 3 010) between the hood and the windshield panel
- Fit the windshield at top
- Evenly align the windshield at left and right
- Fit the windshield at the bottom and press
- Press the windshield upward until the rubber frame of the windshield evenly makes contact with the roof
- Secure the windshield in this installation position with the two types of yellow plastic adhesive tape (1)TECHNICAL DATA SPECIFICATION
Gap dimension windshield to roof outer skin 1 windshield; 2 roof outer skin a
4.3+1 2-1.2mmb
3.0+1.4-1.4 mmb (with HUD)
2.5+1.4-1.4 mm
Follow-up work
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT GUTTER STRIP ON THE WINDSHIELD .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to INSTALLING THE RAIN-LIGHT-SOLAR-CONDENSATION SENSOR (PARTIALLY REMOVED) .
- Refer to INSTALLING THE KAFAS CAMERA .
- Refer to INSTALLING INTERIOR REARVIEW MIRROR .
- Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
- Refer to CALIBRATE KAFAS CAMERA .
