Replacing the rubber mount for the camber control arm in the rear axle support

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .

CAUTION: Spring preload.
Injury hazard!

The use of the specified special tool (tool) is mandatory.
Carry out the described steps properly.

NOTE: TECHNICAL INFORMATION
Perform wheel alignment after installation.

Preliminary work

Refer to REMOVING REAR LEFT OR RIGHT WHEEL .
Refer to REMOVING REAR WHEEL ARCH COVER .
Refer to REMOVING THE SHOCK ABSORBER .
Refer to REMOVING COIL SPRING .
Refer to RELEASING CAMBER CONTROL ARM FROM THE REAR AXLE SUPPORT .

NOTE: Description is for right component only. The procedure on the left side is identical.

Pull out the rubber mount from the rear axle support using special tools 0 494 981 (33 4 465), 0 494 982 (33 4 466), 0 494 979 (33 4 463), 0 494 980 (33 4 464) and 0 494 978 (33 4 462).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the rubber mount.
Parts: Rubber mount
Tighten the rubber mount using special tools 0 495 042 (33 4 455), 0 495 043 (33 4 456), 0 495 039 (33 4 452) and 0 495 038 (33 4 451).

Courtesy of BMW OF NORTH AMERICA, INC.

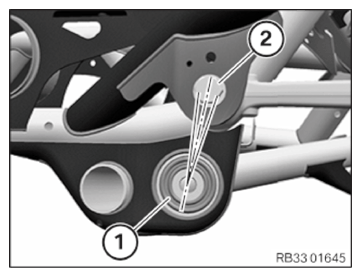

Align the rubber mount (1) with the slits of screw connection (2).

TECHNICAL DATA SPECIFICATION

Position of the rubber mount in the rear axle support
If necessary, place a mark on the outer area of the rubber mount to check the installation position.	Permissible rotation	-7°... +7°

Courtesy of BMW OF NORTH AMERICA, INC.

Pull in the rubber mount (1) using special tools 0 494 981 (33 4 465), 0 494 982 (33 4 466), 2 361 891 and 2 361 896 by approx. 1 cm into the rear axle support.
Release and remove the special tool 0 494 928 (33 4 450).
Pull the rubber mount (1) using special tools 0 494 981 (33 4 465), 0 494 982 (33 4 466), 2 361 891 and 2 361 896 up to the stop in the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to FASTENING THE CAMBER CONTROL ARM ON THE REAR AXLE SUPPORT .
Refer to INSTALLING THE COIL SPRINGS .
Refer to INSTALLING THE SHOCK ABSORBER .
Refer to REMOVING THE REAR WHEEL ARCH COVER .
Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
Refer to MEASURING THE RIDE HEIGHT OF REAR AXLE AND ADJUSTING THE NORMAL POSITION .
Refer to TIGHTENING THE SCREW CONNECTION OF THE CAMBER LINK TO THE SHOCK ABSORBER .
Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
