Install the coil springs

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Check bottom spring pad for damage and, if necessary, replace it.
Check position of the bottom spring pad with the plastic tab (1) in the outer bore on the camber control arm and correct if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and position the coil spring (1) from above in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the coil spring (1) in such a way that the lower coil spring end is in form-fit contact with the lower spring pad (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Position the top spring pad (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in the coil spring (1) at the top spring pad (2).
Position the top spring pad on the coil spring (1) in such a way that the coil spring end (2) is on form-fit contact with the top spring pad.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the coil spring in the middle.
The special tool 0 494 997 (33 5 016) must not touch the camber control arm.
Slacken the coil spring with the special tools 0 494 997 (33 5 016) and 0 494 934 (33 5 020) .
Provide counter support to the spindle using special tool 0 494 998 (33 5 017) and standard tool.

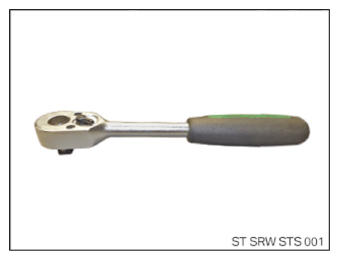

Standard tool: 3/8" reversible ratchet

3/8" reversible ratchet

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

3/8" reversible ratchet

Check the installation position of the coil spring, correct if necessary and remove the special tools.

Follow-up work

Refer to INSTALLING THE SHOCK ABSORBER .
Refer to REMOVING THE REAR WHEEL ARCH COVER .
Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
Refer to MEASURING THE RIDE HEIGHT OF REAR AXLE AND ADJUSTING THE NORMAL POSITION .
Refer to TIGHTENING THE SCREW CONNECTION OF THE CAMBER LINK TO THE SHOCK ABSORBER .
