Installing the servomotor

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Position the servomotor so that the gearing is aligned in an interlocking way.

Make sure that the cam (1) of the servomotor is positioned without distortion in the recess.

Courtesy of BMW OF NORTH AMERICA, INC.

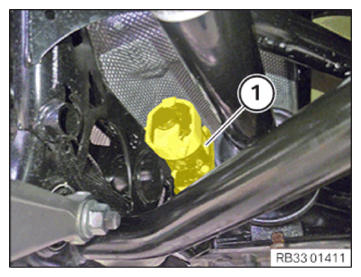

Position servomotor (1).

Courtesy of BMW OF NORTH AMERICA, INC.

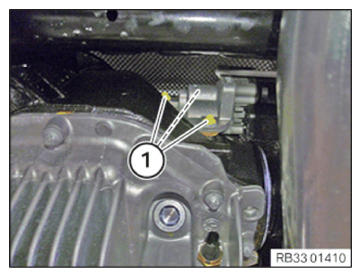

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Servomotor (complete set) to rear axle differential
M6	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

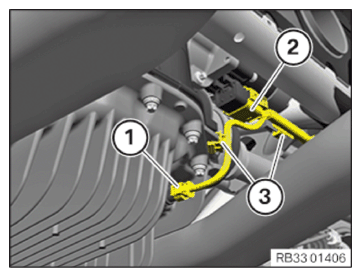

Fasten the cable on holders (3).
Connect connectors (1) and (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE SERVOMOTOR DUE TO OIL LEAK: CHECKING THE OIL LEVEL IN THE REAR AXLE DIFFERENTIAL .
Refer to REPLACING (BEVEL GEARS OR SERVOMOTOR): CARRYING OUT THE "DELETE WEAR DATA" SERVICE FUNCTION .
