Remove swivel bearing
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to THE INFORMATION ON THE CARBON CERAMIC BRAKE .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to RELEASING THE WISHBONE, TENSION STRUT AND TIE ROD END FROM THE SWIVEL BEARING .
- Refer to RELEASING THE FRONT BRAKE CALIPER .
- Refer to RELEASING THE WHEEL SPEED SENSOR FROM THE SWIVEL BEARING .
- Refer to REMOVING FRONT BRAKE DISC .

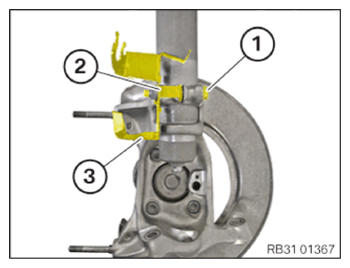

- Release the screw (1), counter support at the nut (2) while doing so.
- Remove the holder (3).
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

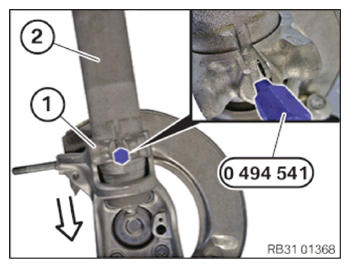

- Spread the swivel bearing (1) with the special tool 0 494 541 (31 2 230) and detach in arrow direction from the shock absorber (2).
