Remove rear axle differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot exhaust system.
Risk of burning!
Risk of burning!
- Any work must exclusively be carried out with an exhaust system that has cooled down.
NOTE:
RISK OF DAMAGE
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.
- After completion of repair work, check the transmission oil level in the rear axle differential.
- Use only the approved final drive transmission oil.
NOTE:
TECHNICAL INFORMATION
After the break-in phase of 2000 km, during which the running-in instructions for new vehicles apply, an oil change must be carried out in the rear axle differential!
After the break-in phase of 2000 km, during which the running-in instructions for new vehicles apply, an oil change must be carried out in the rear axle differential!
Preliminary work
- Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
- Refer to REMOVING THE REAR DIFFUSER .
- Removing the undershield on the left fuel tank.
- Loosen screws (1).
- Loosen screws (2).
- Remove the undershield (1) at the fuel tank on the left.
- Refer to REMOVING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to REMOVING REINFORCEMENT STRUT .
- Removing rear tunnel connecting support.
- Loosen screws (1).
- Loosen screws (2).
- Removing rear tunnel connecting support(3).
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE HEAT SHIELD AT THE REAR .
- Refer to RELEASING THE PROP SHAFT FROM THE REAR AXLE DIFFERENTIAL .
- Refer to RELEASING THE OUTPUT SHAFT ON THE LEFT AND RIGHT FROM THE REAR AXLE DIFFERENTIAL .
NOTE:
RISK OF DAMAGE
Damage to rear axle differential.
If the rear axle differential drops down, persons can be injured or the rear axle differential can be damaged.
Damage to rear axle differential.
If the rear axle differential drops down, persons can be injured or the rear axle differential can be damaged.
- Secure the rear axle differential using a luggage strap.
- Unlock and disconnect the plug connections (1) and (2).
- Detach cable from the holders (3).
- Unfasten nut (1).
- Remove the ground strap (2).
Preparing the special tool
- Place the special tool 0 495 827 (23 4 150) onto the universal jack 2 219 012 .
- Support the rear axle differential (1) with the special tool 0 495 827 (23 4 150) .
- Secure rear axle differential (1) with the special tool 0 496 080 (33 5 206) on the special tool 0 495 827 (23 4 150) .
- Loosen nut (1) on the rear axle support at rear.
- Pull the bolt (1) out of the rear axle support.
- Loosen screws (1) rear axle support at front.

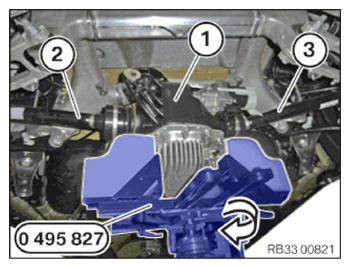

- Slightly lower the rear axle differential (1) with the special tool 0 495 827 (23 4 150) .
- Rotate the rear axle differential (1) slightly to the left in the direction of arrow and remove the left output shaft (2) at the same time.
- Remove the right output shaft (3).
- Tie up the output shafts (2) and (3).
- Completely lower the rear axle differential (1) and remove.
