Releasing the output shaft on the left and right from the rear axle differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Detach the output shaft from the rear axle differential
- Position the special tool at the circumferential slot (1)
of the output shaft.

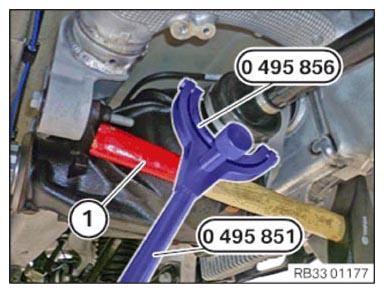

- Position the special tool 0 495 851 (33 5 120) to the output shaft using special tool 0 495 856 (33 5 124) .
- Support the special tool 0 495 851 (33 5 120) on a standard tool (1) .
- Press out the output shaft from the rear axle differential with a jerk.
