Install the radial shaft seal of the actuator shaft (ATC 13-1)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The radial shaft seal must be installed using the special tool (assembly sleeve), as the radial shaft seal can otherwise be damaged.
The radial shaft seal must be installed using the special tool (assembly sleeve), as the radial shaft seal can otherwise be damaged.
- Slide the special tool (assembly sleeve) 0 490 746 (11 1 380) onto the actuator shaft .
- Replace radial shaft seal (1).
Parts: Radial shaft seal
- Slide the radial shaft seal (1) with the special tool (assembly sleeve) 0 490 746 (11 1 380) onto the actuator shaft.
- Drive the radial shaft seal to the stop using the special tool 0 490 724 (11 1 200) and a plastic hammer.
- Remove the special tool (assembly sleeve) 0 490 746 (11 1 380) .

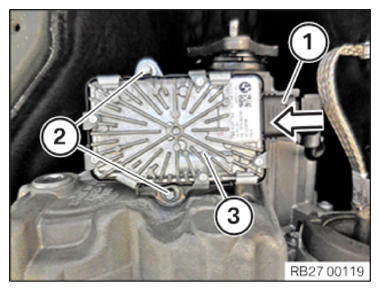

- Align the drive shaft (1) from the control unit to the input flange (2) on the transmission.
- When installing, slightly turn the transfer box control unit until the drive shaft noticeably snaps in the drive flange.
- Install the VTG control unit (3).
- Insert screws (2) and tighten.
TIGHTENING TORQUE SPECIFICATIONS
| VTG control unit on transfer box | ||
| M8 | Tightening torque | 25 Nm |
- Connect connector (1).
Follow-up work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to CHECKING/TOPPING UP THE TRANSFER BOX OIL (ACTIVE TORQUE CONTROL 13-1) .
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to INSTALLING REAR UNDERBODY PROTECTION .
