Install rear underbody protection
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

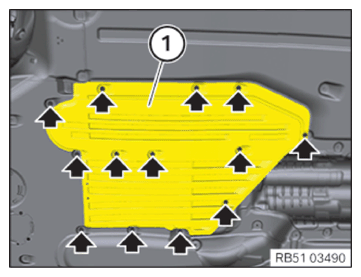

- Version A:
Insert the rear underbody protection (1).
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONSUndershield screw Tightening torque 2.6 Nm Plastic nut Tightening torque 2.6 Nm - Version

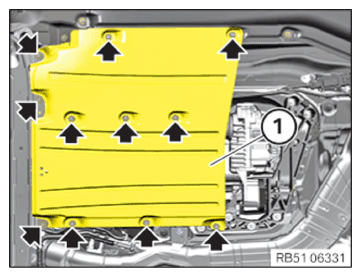

B:
Feed in rear underbody protection (1) and install.
Tighten screws (arrows).

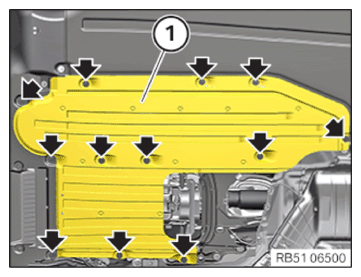

TIGHTENING TORQUE SPECIFICATIONSUndershield screw Tightening torque 2.6 Nm Plastic nut Tightening torque 2.6 Nm - Version C:
Feed in rear underbody protection (1) and install.
Tighten screws (arrows),
TIGHTENING TORQUE SPECIFICATIONSUndershield screw Tightening torque 2.6 Nm Plastic nut Tightening torque 2.6 Nm
