Install the backrest frame for the right rear seat backrest

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the backrest frame for the rear seat backrest

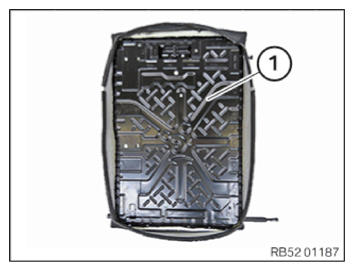

Insert and position the backrest frame (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the outer bearing (2).
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Outer bearing to backrest frame
Screw	tightening torque	36 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE GUIDE SLEEVE FOR THE REAR HEAD RESTRAINT .
Refer to INSTALLING THE REAR PANEL ON THE REAR SEAT BACKREST ON THE RIGHT .
Refer to INSTALLING THE HEAD RESTRAINT AT THE REAR .
Refer to INSTALLING THE REAR SEAT BACKREST .
Refer to INSTALLING RIGHT BACKREST SIDE SECTION .
