Install the rear seat backrest
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

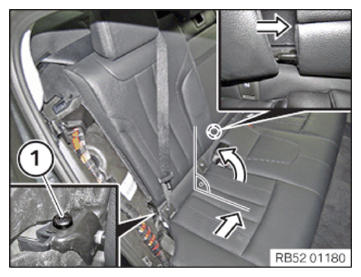

- Feed in the rear seat backrest into the central mount in arrow direction.
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Rear seat backrest on body | ||
|---|---|---|
| Screw Replace screw. |
Tightening torque | 42 Nm |
Follow-up work
- Refer to INSTALLING RIGHT BACKREST SIDE SECTION .
