Install the emblem in the backrest of the front seat (M CFRP bucket seat)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Preliminary work

Refer to REMOVING THE INSERTING OF THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

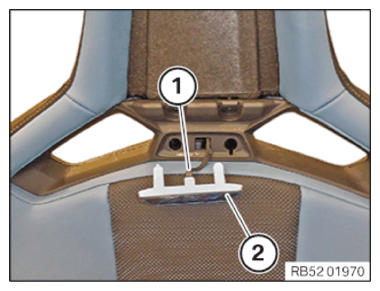

Position the emblem (2) correctly.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

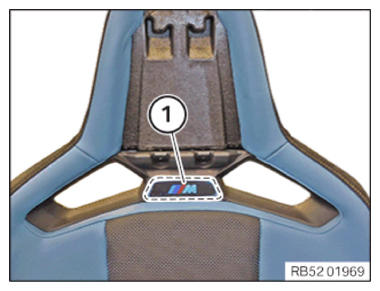

Clip in the emblem (1) carefully in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
