Remove the insert of the head restraint (M CFRP bucket seat)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components
.
Scratches, surface damage
.
- Protect working area.
- Handle tools and components carefully.

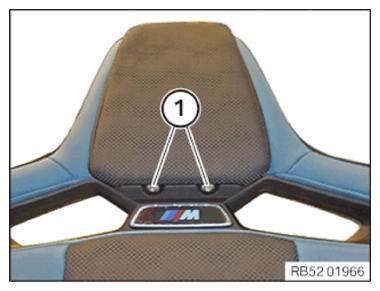

- Loosen screws (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

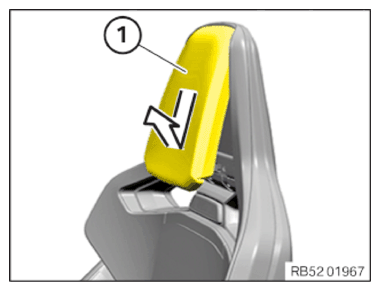

- Remove the insert (1) carefully
in the arrow direction.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
