Install the front purge air line
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

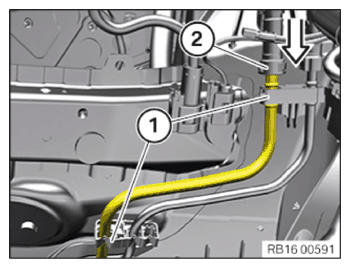

- Position the purge air line.
- Clip the purge air line into the holders (1) .
- Position the snap fastener (2) and connect.
- Clip the purge air line into the holders (1) .
- Clip the purge air line into the holders (1) .
- Attach and connect the snap fastener (1) .
- Clip the purge air line into the holder (2) .
Follow-up work
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to INSTALLING THE UNDERSHIELD ON THE SIDES .
- Refer to INSTALLING FUEL TANK .
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING THE COMPLETE PROP SHAFT .
- Refer to INSTALLING THE HEAT SHIELDS .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR TUNNEL CONNECTING SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT .
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to CONNECTING DELIVERY UNIT .
- Refer to INSTALLING THE REAR SEAT BENCH .
- Refer to INSTALLING THE REAR WHEEL ARCH COVER ON THE RIGHT .
- Refer to MOUNTING THE REAR RIGHT WHEEL .
- Refer to FILLING FUEL TANK .
- Refer to CONNECTING BATTERY GROUND LEAD .
