Install fuel tank
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Lift the fuel tank (3) and while doing so, feed in the fuel filler neck vent pipe through the rear axle support.
- Guide the fuel filler neck vent pipe through the body into the wheel well.
- Lift fuel tank (3) until it is in the installation position, noting the installation position of the fuel filler neck vent pipe.
- Replace nut (2).
Parts: Nut
- Fit nut (2) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Fuel tank to body | ||
| Nut M8 Replace nut. | tightening torque | 19 Nm |
- Replace screws (1).
Parts: Screws
- Mount the retaining straps and position and tighten screws (1).
TIGHTENING TORQUES SPECIFICATION
| Fuel tank retaining strap to body | ||
| M8 screw Replace screws. | tightening torque | 19 Nm |

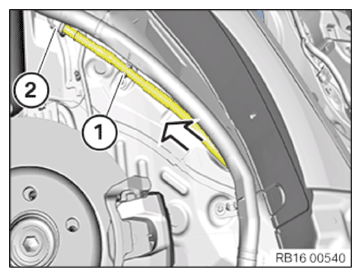

- Hook the fuel filler neck vent pipe into holders (1).
- Position snap fastener (2) and lock.
- Mount the rubber hose on the fuel tank in the arrow direction.
- Replace the hose clamp (1).
Parts: Hose clamp
- Position hose clamp (1) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Filling hose on fuel tank | ||
| Hose clamp Replace hose clamp | tightening torque | 4 Nm |
Follow-up work
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING THE COMPLETE PROP SHAFT .
- Refer to INSTALLING THE HEAT SHIELDS .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR TUNNEL CONNECTING SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT .
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to CONNECTING DELIVERY UNIT .
- Refer to INSTALLING THE REAR SEAT BENCH .
- Refer to INSTALLING THE REAR WHEEL ARCH COVER ON THE RIGHT .
- Refer to MOUNTING THE REAR RIGHT WHEEL .
- Refer to FILLING FUEL TANK .
